63-7479-66 SP-NO/NC Lever Microswitch, 1 A @ 250 V ac F1NST8A1
Product Description
Product Model: 63-7479-66Product Brand: Saia-Burgess Fe […]
Contact Us
Product Details
Product Model: 63-7479-66
Product Brand: Saia-Burgess
Features
- Sub-Miniature Side Mounted PCB Switch. From Saia-Burgess, this selection of sub-miniature switches are small size and low current, and are available with either a lever or plunger style actuator. Designed to side-mount to a printed circuit board, these robust sub-miniature switches have a high mechanical life. Features and Benefits:. Single pole changeover PCB connection Sealed to IP54 Flux Resistant Terminals SPCO silver plated contacts Contact Rating; 1A; 2A, 250Vac; 30Vdc
Spec
- Quantity:1piece
- Actuator Type : Lever
- Terminal Type : Through Hole
- Contact Current Rating : 1 A @ 250 V ac
- Contact Configuration : SP-NO/NC
- IP Rating : IP54
- Operating Force : 0.6 N
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +85°C
- Contact Material : Fine Silver
- Case Material : Polyamide
- Mechanical Life : 10^7Operations
- Release Force : 0.09N
- Operating Temperature Range : -40 → +85°C
- CODE No.:301-2236
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-6620-73 Polyester Capacitor (PET) 200 V ac, 630 V dc 22 nF ±5% 1 Bag (10 Pieces) B32521N8223J000
model: 63-6620-73
brand: EPCOS
Electronic/Electrical Parts and Controll Equipments
63-4870-22 Murata Power Solutions NME 1W Isolated DC-DC Converter Through Hole, Voltage in 10.8 → 13.2 V dc, Voltage out 5V NME1205SC
model: 63-4870-22
brand: Murata Power Solutions
Electronic/Electrical Parts and Controll Equipments
63-6860-27 Insulation DC-DC Converter Vout: 24 V dc 18 to 36 V dc 6 W 24 V dc JCD0624S24
model: 63-6860-27
brand: XP Power
Electronic/Electrical Parts and Controll Equipments

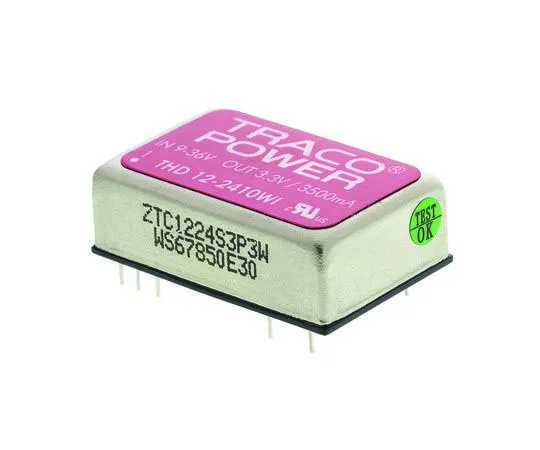

63-7357-85 TRACOPOWER THD 12WI 12W Isolated DC-DC Converter Through Hole, Voltage in 9 → 36 V dc, Voltage out 3.3V dc THD 12-2410WI
