63-7472-14 Finder55 Series 3PDT Non-Latching Relay Plug In, 230V ac Coil, 10A 55.33.8.230.0010
Product Description
Product Model: 63-7472-14Product Brand: Finder Features […]
Contact Us
Product Details
Product Model: 63-7472-14
Product Brand: Finder
Features
- UL; C-UL recognised; VDE. 55 Series Relay. The Finder 55 series miniature relays for general purpose applications. Features ; Benefits. Test button and mechanical indicator. Ac/dc coils. Cadmium free contacts. Dimensions: H 39.5, W 20.6, D 27.5. Mechanical life: AC; 2 x 10 ;sup>7 ;/sup>, DC; 5 x 10 ;sup>7 ;/sup>. Operating temperature range -40 to +85°C. Wide range of accessories also available. Silver-Nickel Cadmium free contacts. Dust-proof RT I standard protection rating. For *** with 94 series sockets
Spec
- Quantity:1piece
- Coil Voltage : 230V ac
- Coil Power : 1.5W
- Coil Resistance : 17 kΩ
- Isolation Coil To Contact : 4kV
- Contact Configuration : 3PDT
- Mounting Type : Plug In
- Switching Current : 10A
- Terminal Type : Quick Connect
- Number of Poles : 3
- Maximum Switching Voltage AC : 400V ac
- Height : 37.2mm
- CODE No.:292-8310
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4760-79 Deutsch IMC Series Panel Mount Housing, 12 contacts Socket IMC24-2212X
model: 63-4760-79
brand: Deutsch
Electronic/Electrical Parts and Controll Equipments
63-4924-09 Metal Oxide Film Resistor MOS5 Series 2 kΩ5 W ± 2% MOS5C202G
model: 63-4924-09
brand: KOA
Electronic/Electrical Parts and Controll Equipments
Electronic/Electrical Parts and Controll Equipments

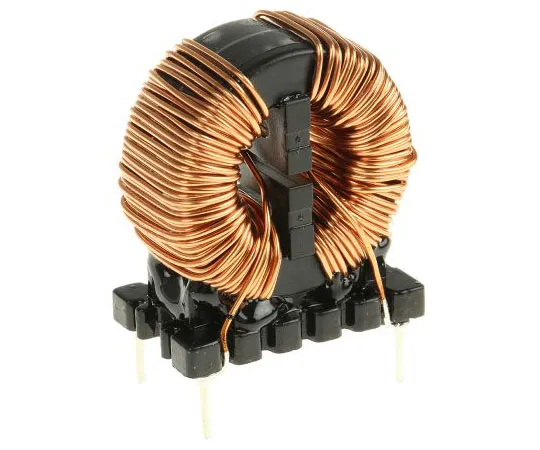

63-8021-92 Wurth 2 x 90 mH -30 → +50% Nano Crystalline Common Mode Choke, Max SRF:1 kHz → 300 MHz, 3.5A Idc, 2 x 7448050490
