63-7468-32 HOBUT Analogue Panel Ammeter 0/60/120A For 60/5A CT AC, 72mm x 72mm Moving Iron PD72MIS5A2/2-001 0/60/120A
Product Description
Product Model: 63-7468-32Product Brand: HOBUT Features […]
Contact Us
Product Details
Product Model: 63-7468-32
Product Brand: HOBUT
Features
- mounting brackets. Ammeter overload is twice current rating - shown within (brackets) in scale range. AC Moving Iron Current and Voltage Meters. A series from 72 x 72 mm DIN sized panel meter with a horizontal scale, ***d widely in the panel building industry. Panel Meter with integrated, horizontal 90° scale Accuracy class 1.5 to BS89 IEC51 Scaled up to 40A direct connected Flame retardant case to UL94V0 Protection Class IP52 (front of panel) Fixing via single hole using ‘U ‘ clamp (anti-rotation pin supplied), or 4-point M3
Spec
- Quantity:1piece
- Maximum Value : 0/60/120A For 60/5A CT
- Current Type : AC
- Moving Element : Moving Iron
- Cutout Height : 72mm
- Cutout Width : 72mm
- Depth : 30.5mm
- Meter Accuracy : Class 1.5
- Minimum Temperature : -25°C
- Maximum Temperature : +40°C
- Measurement Range : 0/60/120A For 60/5A CT
- CODE No.:287-2087
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7478-51 RS PRO Pneumatic Elbow Tube-to-Tube Adapter Push In 6 mm to Push In 6 mm 299-3869
model: 63-7478-51
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-6762-97 1158mm Synthetic Rubber Hydraulic Hose Assembly, 330bar Max Pressure 110-2223
model: 63-6762-97
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

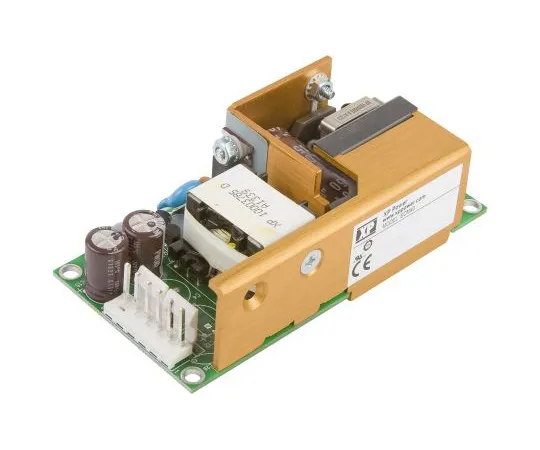

63-6851-25 AC/DC Converter 5/± 15 V dc 1.5 A 6 A 500 mA 40 W Open Frame Y ECM40UT33
