63-7379-26 50kΩ Through Hole Trimmer Potentiometer 0.5W Top Adjust Vishay 64W Series M64W503KB40
Product Description
Product Model: 63-7379-26Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-7379-26
Product Brand: Vishay
Features
- Top Adjust 64W Series. Slim body profile, higher packing density Sealed to withstand immersion board washing Flame retardant plastic housing Double chevron shaft seal Moulded body with built in stand-offs IC style pins for PCB assembly Precious metal wiper for set point stability
Spec
- Quantity:1box(200pieces)
- Maximum Resistance : 50kΩ
- Mounting Type : Through Hole
- Number of Turns : 19 (Electrical), 22 (Mechanical)
- Orientation : Top Adjust
- Power Rating : 0.5W
- Series : 64W
- Termination Style : Pin
- Tolerance : ±10%
- Shaft Diameter : 2.2 mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +155°C
- CODE No.:169-3081
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4771-93 Paulstra 521403 78mm Shock Mount M10 40mm Diameter 30daN Compression Load 5mm, Male to Male Natural Rubber 521403
model: 63-4771-93
brand: Paulstra
Electronic/Electrical Parts and Controll Equipments
63-5107-44 ON Semiconductor, 100V Zener Diode 5% 3 W SMT 2-Pin SMB 1SMB5949BT3G
model: 63-5107-44
brand: ON Semiconductor
Electronic/Electrical Parts and Controll Equipments

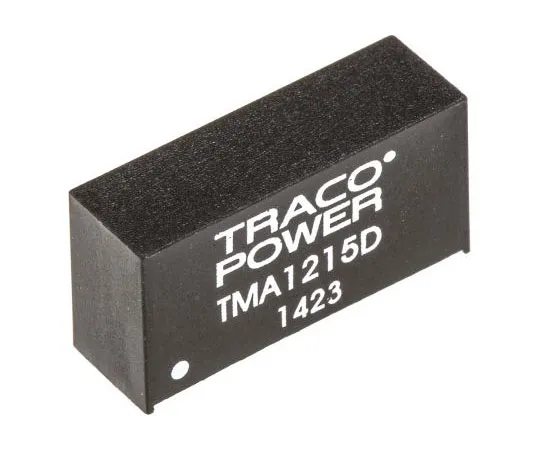

63-7415-72 TRACOPOWER TMA 1W Isolated DC-DC Converter Through Hole, Voltage in 10.8 → 13.2 V dc, Voltage out ±15V dc TMA 1215D
