Electronic/Electrical Parts and Controll Equipments
63-7356-75 Recom RSO 1W Isolated DC-DC Converter Through Hole, Voltage in 9 → 18 V dc, Voltage out 12V dc RSO-1212S
Product Description
Product Model: 63-7356-75Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-7356-75
Product Brand: Recom
Features
- No de-rating over quoted operating temperature range. MTBF to MIL-HDBK-217F (25°C). Recom 1W SIP Single/Dual Output Medical Approved Regulated Isolated DC-DC Converter - RSO Series. Wide 2:1 input voltage range Regulated outputs Medical safety approval EN 60601-1 1kV input / output isolation Low noise No external capacitor needed Remote On/Off Control Continuous short circuit protection UL94V-0 package material SIP-8 package
Spec
- Quantity:1set(22pieces)
- Output Voltage : 12V dc
- Input Voltage Range : 9 → 18 V dc
- Input Voltage Nominal : 12 V dc
- Isolation Voltage : 500V ac
- Power Rating : 1W
- Output Current : 83mA
- Mounting Type : Through Hole
- Number of Outputs : 1
- Package : SIP
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Series : RSO
- CODE No.:166-8905
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
Electronic/Electrical Parts and Controll Equipments
63-4762-67 Connector Housing Female 10 Pole 2 Row 3.81 mm Dynamic D -3000 178289-5
model: 63-4762-67
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments
63-7505-41 PPS drop float switch w/ext PVC lead,N/C RSF26Y100RF
model: 63-7505-41
brand: Cynergy3
Electronic/Electrical Parts and Controll Equipments

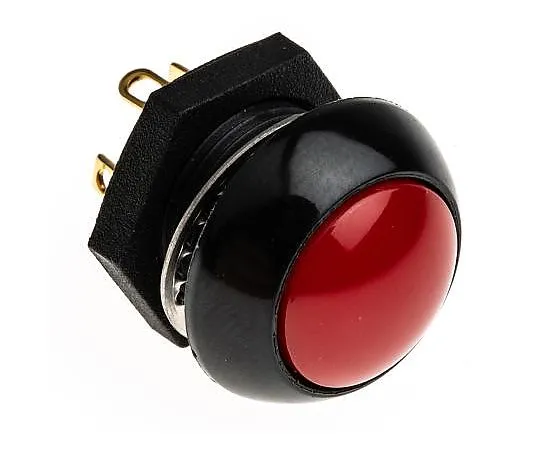

63-4793-35 Otto Double Pole Double Throw (DPDT) Momentary Push Button Switch, Panel Mount, 28V dc P9-113121
