63-7343-26 ON Semiconductor SMBJ30A, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA SMBJ30A
model:
63-7343-26
brand:
ON Semiconductor
Product Description
Product Model: 63-7343-26Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-7343-26
Product Brand: ON Semiconductor
Features
- Transient Voltage Suppressors SMT Unidirectional 600W, SMBJ Series, Fairchild Semiconductor. Glass-Passivated Junction 600W Peak Pulse Power Capability Excellent Clamping Capability Low-Incremental Surge Resistance Fast Response Time UL Certificate #E258596 UL94V-0 Flammability Classification
Spec
- Quantity:1set(3000pieces)
- Direction Type : Uni-Directional
- Maximum Clamping Voltage : 48.4V
- Minimum Breakdown Voltage : 33.3V
- Mounting Type : Surface Mount
- Package Type : DO-214AA (SMB)
- Maximum Reverse Stand-off Voltage : 30V
- Pin Count : 2
- Peak Pulse Power Dissipation : 600W
- Maximum Peak Pulse Current : 12.4A
- Number of Elements per Chip : 1
- Minimum Operating Temperature : -65 °C
- Maximum Operating Temperature : +150 °C
- Width : 3.94mm
- CODE No.:166-1998
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-5118-64 150kΩ 0603 Thick Film SMD Resistor ±1% 0.1W 804-9016
model: 63-5118-64
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-4874-40 RS Pro Straight 50Ω Cable Mount BNC Connector, Plug, Nickel, Clamp Termination, RG178 546-3816
model: 63-4874-40
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

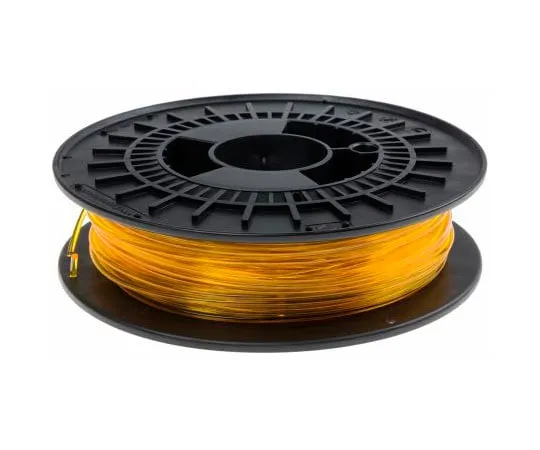

63-8063-13 RS PRO 2.85mm Translucent Yellow PET-G 3D Printer Filament, 500g 891-9319
