Electronic/Electrical Parts and Controll Equipments
63-7333-10 Thermal Interface Sheet, Gap Pad VO Ultra Soft, 1W/m·K, 200 x 100mm 0.04in GPVOUS-0.040-00-0816
Product Description
Product Model: 63-7333-10Product Brand: Bergquist Featu […]
Contact Us
Product Details
Product Model: 63-7333-10
Product Brand: Bergquist
Features
- GAP Pad® VO Ultra Soft. Electrical insulators and thermal conductors Adapted for electrical insulation and as thermal joints on assemblies of components where the height varies The material has excellent elasticity The thicknesses available means that GAP Pads can be ***d when the texture of the surface varies The Ultra Soft range has the same characteristics but is softer and more malleable The GAP Pad XX00S series is designed for low pressure and stress applications
Spec
- Quantity:1piece
- Dimensions : 200 x 100mm
- Thickness : 0.04in
- Length : 200mm
- Width : 100mm
- Thermal Conductivity : 1W/m·K
- Material : Gap Pad VO Ultra Soft
- Minimum Operating Temperature : -60°C
- Maximum Operating Temperature : +200°C
- Hardness : Shore OO 5
- Material Trade Name : Gap Pad VO Ultra Soft
- Operating Temperature Range : -60 → +200 °C
- CODE No.:367-3184
Related product recommendations
You may also be interested in the following products
63-6968-71 Wurth Elektronik 100μF 450V dc Aluminium Electrolytic Capacitor, Through Hole 22 (Dia.) x 31mm +105°C 22mm 10mm 861111483006
model: 63-6968-71
brand: Wurth Elektronik
63-7349-92 Recom RS3 3W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 9 V dc, Voltage out 12V dc RS3-0512S
model: 63-7349-92
brand: Recom

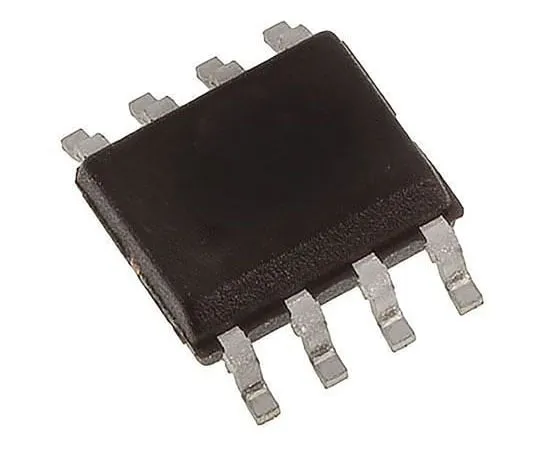

63-8445-46 IXYS CPC9909N LED Driver IC, 550 V dc 2mA 8-Pin SOIC CPC9909N
