1-2400-01-56 Digital Temperature/Humidity SD Data Logger with English Calibration Certificate AD5696
Product Description
Product Model: 1-2400-01-56Product Brand: A&D Featu […]
Contact Us
Product Details
Product Model: 1-2400-01-56
Product Brand: A&D
Features
- Alarm settings for temperature, humidity, and WBGT index are available.
- Data recorded on the SD card can be saved to a personal computer, and can be read and analyzed by spreadsheet software.
Spec
- Measurement range (Temperature/Humidity): 0 to 50 °C/20 to 90 %RH
- Minimum display (temperature/humidity): 0.1 °C/0.1 %RH
- Accuracy: Temperature/± 1 °C, Humidity/± 5 %RH (30.0 to 70.0 %RH), ± 10 %RH (Other) at 25 °C
- Display: Temperature (Temperature TA), Humidity (RH), WBGT Index, Time
- WBGT Index Range: -2 to + 62 °C
- Data Recording capacity: 1 file up to 30,000 points
- Measurement interval: 1 to 720 minutes (configurable in 1 minute increments)
- Power Supply: DC5 V, 500 mA AC adaptor (included) or AA size Alkaline battery x 3 pieces (sold separately)
- Size: 91 x 30 x 110 mm
- Weight: about 140 g
- With SD card (for testing)
- Storage location: SD card (up to 2 GB), SDHC card (up to 16 GB)
- *Products with calibration certificates are Azwan's original service that calibrates measuring instruments at the time of shipment at AS ONE (a AS ONE partner company) and issues calibration certificate.
- This product is a general calibration. calibration certificate (calibration certificate, test results report, traceability system chart) is attached.
- *It comes with both a set of 3 Japanese documents and a set of 3 English translations.
- Calibration points are 1 point at 50% at 25 °C. If you would like other points, please contact us separately.
Related product recommendations
You may also be interested in the following products
65-4297-32-20 Sealed Pressure Gauge (75Φ) Vertical A Frame for Steam with 0.6 MPa Inspection Certificate BC12-181
model: 65-4297-32-20
brand: NAGANO KEIKI Co., Ltd.

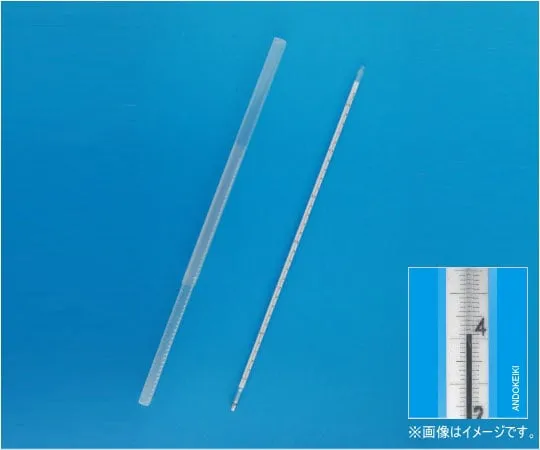

64-0703-31 Standard Thermometer (Double-Tube) W 150 ~ 200 °C (0.1) Total Length 340 mm All Submerged Inspection Results Included 1-W06-4-VC
