63-7019-53 XY2CE Grab Wire Switch With E-Stop, 70m, NC, NO XY2CE2A250EX
model:
63-7019-53
brand:
Telemecanique Sensors
Product Description
Product Model: 63-7019-53Product Brand: Telemecanique S […]
Contact Us
Product Details
Product Model: 63-7019-53
Product Brand: Telemecanique Sensors
Features
- Telemecanique XY2CE EX ATEX EMERGENCY STOP ROPE SWITCH
- Telemecanique XY2CE EX ATEX EMERGENCY STOP ROPE SWITCH reduces the risk of worker injury and damage to machinery and products being manufactured. If the normal emergency stop action is not available, it can be activated by a single manual operation. It also works if the trip wire is damaged.
- Features and Advantages: The switch incorporates an open operating contact on the + side, and the switch is actuated by the action on the + side. The switch is latched in the operating position (N/C safety contact open). The function of the N/O contact is to provide a reset button to close the signal only safety contact again and to restart the machine manual operation of the control device in the machine start circuit away from the trip wire switch Recomm***ed distance between cable supports: 15 m
Spec
- Quantity:1piece
- Range : Preventa XY2
- Series : XY2CE
- Reset Button : Yes
- Pole Configuration : DPST
- Indicator Type : Rope Tension
- Maximum Rope Span : 70m
- Maximum Current : 3 A ac, 270 mA dc
- Maximum AC Voltage : 240V
- Maximum DC Voltage : 250V
- Housing Material : Stainless Steel (Cover), Zamak (Body)
- Number of Cable Entries : 1 (Cable Gland), 2 (Blanking Plug)
- Size of Cable Entries : ISO M20
- Maximum Operating Temperature : +70°C
- CODE No.:130-0883
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-5008-88 Nichicon 470nF 350V dc Aluminium Electrolytic Capacitor, Through Hole 8 (Dia.) x 11.5mm +105°C 8mm 3.5mm UPW2VR47MPD
model: 63-5008-88
brand: NICHICON
Electronic/Electrical Parts and Controll Equipments
63-8020-80 3.6 V Green LED 5mm Through Hole, Wurth Elektronik WL-TMRW 151053GS03000 151053GS03000
model: 63-8020-80
brand: Wurth Elektronik
Electronic/Electrical Parts and Controll Equipments

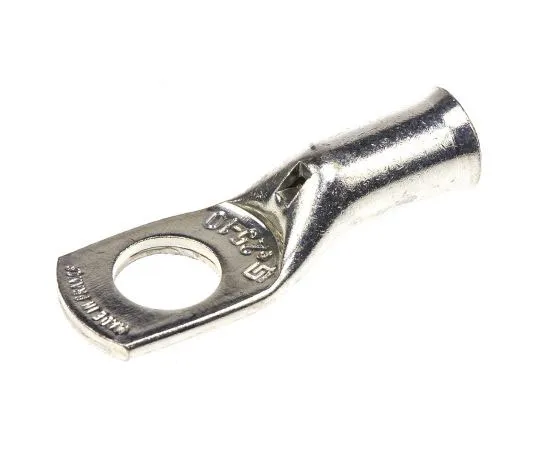

63-7486-50 TE Connectivity XCT Series Uninsulated Tubular Ring Terminal, 10mm Stud Size, 25mm² to 25mm² Wire Size 710026-7
