Electronic/Electrical Parts and Controll Equipments
63-6910-29 DC-DC Converter Non- Insulation high voltage Type 1 500 microA 2 kV 1 W CA20P-5
Product Description
Product Model: 63-6910-29Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6910-29
Product Brand: XP Power
Features
- UL1950, RoHS
- XP Power DC-High Voltage DC Non-Insulated Converter CA Series
- CA Series conveyors are fully programmable and precisely adjustable. The CA series is a high-performance, high-voltage power supply with a low noise level.
- Features and Benefits: Minimum ripple precision adjustment of only 5 PPM Shield Case Voltage Monitor/Leadback High level stability Wide input voltage range Short circuit, arc protection Ultra low EMI/RFI precision on-board reference Potentiometer or external voltage programming Calibration adjustment access Sealed converter - resistance to immersion cleaning process Reliability
- Application:
- Photomultiplier tube avalanche photodiode Solid state detector Electrophoresis EO lens Piezo device Capacitor charging
Spec
- Quantity: 1 piece
- Output Voltage: 2 kV
- Input voltage range: 4.75 to 5.25 V dc
- Rating Power: 1W
- Output current: 500 microA
- Number of outputs: 1
- Minimum temperature: -10 degrees C
- Maximum temperature: + 50 degrees C
- MTBF Average Failure interval: > 2.1 million h
- RoHS compliance status: Compliance
- Securities Code: 123 -8387
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-5044-46 Harting D-sub Series Metal Right Angle D-sub Connector Backshell, 9 Way 61030012013
model: 63-5044-46
brand: HARTING
Electronic/Electrical Parts and Controll Equipments
63-4797-68 Osada OTB-910-B, 4 Way PCB Terminal Strip OTB-910B-4P
model: 63-4797-68
brand: Osada
Electronic/Electrical Parts and Controll Equipments
63-8138-02 Diodes Inc 30V 3A, Schottky Diode, 2-Pin DO-214AB B330-13-F B330-13-F
model: 63-8138-02
brand: DiodesZetex
Electronic/Electrical Parts and Controll Equipments

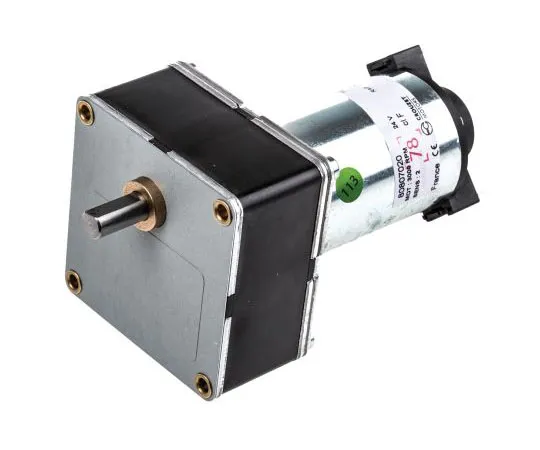

63-7421-64 Crouzet, 24 V dc, 5 Nm, Brushed DC Geared Motor, Output Speed 62 rpm 80807020
