Electronic/Electrical Parts and Controll Equipments
63-6910-21 DC-DC Converter Non- Insulation high voltage Type 1 2 mA 500 V dc 1 W CA05P
Product Description
Product Model: 63-6910-21Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6910-21
Product Brand: XP Power
Features
- UL1950, RoHS
- XP Power DC-High Voltage DC Non-Insulated Converter CA Series
- CA Series conveyors are fully programmable and precisely adjustable. The CA series is a high-performance, high-voltage power supply with a low noise level.
- Features and Benefits: Minimum ripple precision adjustment of only 5 PPM Shield Case Voltage Monitor/Leadback High level stability Wide input voltage range Short circuit, arc protection Ultra low EMI/RFI precision on-board reference Potentiometer or external voltage programming Calibration adjustment access Sealed converter - resistance to immersion cleaning process Reliability
- Application:
- Photomultiplier tube avalanche photodiode Solid state detector Electrophoresis EO lens Piezo device Capacitor charging
Spec
- Quantity: 1 piece
- Output Voltage: 500 V dc
- Input voltage range: 11.5 to 15.5 V dc
- Rating Power: 1W
- Output current: 2 mA
- Number of outputs: 1
- Minimum temperature: -10 degrees C
- Maximum temperature: + 50 degrees C
- MTBF Average Failure interval: > 2.1 million h
- RoHS compliance status: Compliance
- Securities Code: 123 -8379
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4814-29 Vishay MBB0207 Series Axial Thin Film Fixed Resistor 243Ω ±1% 0.6W ±50ppm/°C MBB02070C2430FCT00
model: 63-4814-29
brand: Vishay
Electronic/Electrical Parts and Controll Equipments

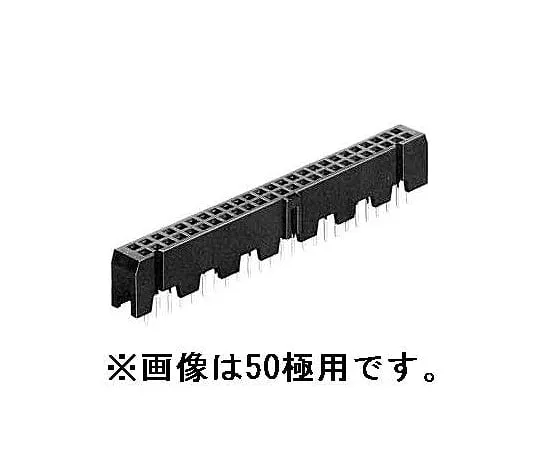

63-3065-94 2.54 mm Straight Receptacle 10 Pole HIF3FB10DA2.54DSA71
