Electronic/Electrical Parts and Controll Equipments
63-6902-21 Push Button Switch 3A Latch Panel Mount Green Bipolar Double Throw (DPDT) IP 67 AV2221E624Q04
model:
63-6902-21
brand:
TE Connectivity
Product Description
Product Model: 63-6902-21Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6902-21
Product Brand: TE Connectivity
Features
- RoHS/R units/UL certified • TE Connectivity AV22 series anti-bandal switch • TE Alcoswitch Anti-bandal switch is designed with industrial security and reliability in mind. AV22 series is a 22 mm panel mounting product. A variety of combinations are available, such as momentary, latch, and an option with LED display. The TE Alcoswitch series provides an excellent, long-life ***r interface solution for a variety of panel mounting applications.
- Features & Benefits: Shock resistant with superior appearance and usability for advanced customization. The rear mounting thin nuts provide an impact resistant design. There are various push button symbols, including the plane, ring, and power logo. Typical applications: Control and communication equipment Elevators and escalator instrumentation
Spec
- Number of pieces: 1
- How the Switch Works: Latches
- Contact Configuration: Bipolar Double Throw (DPDT)
- Mounting Type: Panel Mount
- Panel cutout diameter: 22.2 mm
- Contact current rating: 3A
- Contact AC Rated Voltage: 250 V
- Rated voltage: 250 V ac
- Illumination: Yes
- Actuator Color: Silver
- LED Color: Green
- Compliance: EU ELV compliance, R compliance, UL (E 46765)
- RoHS compliance status: Compliance
- Securities Code: 123 -6271
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
Electronic/Electrical Parts and Controll Equipments
63-5135-23 RS Pro M20 Cable Gland With Locknut, Nylon, IP68 822-9638
model: 63-5135-23
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

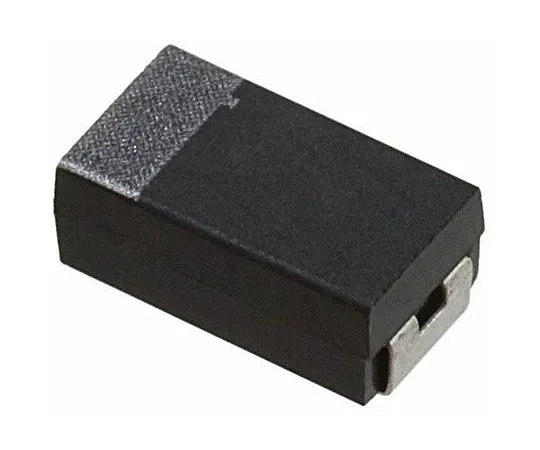

63-9679-12 AVX Tantalum Capacitor 4.7μF 10V dc Electrolytic Solid F93 Series F931A475MAA
