63-6864-63 Thin-film Chip Resistor 1608 size 0.063 W 309 kohm +/- 0.1% CPF0603B309KE1
model:
63-6864-63
brand:
TE Connectivity
Product Description
Product Model: 63-6864-63Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6864-63
Product Brand: TE Connectivity
Features
- TE Connectivity CPF Series 0603 Precision Resistors (220 k →1 M)
- TE Connectivity CPF series thin film precision resistors exhibit high stability and precise accuracy. This chip resistor has a resistance tolerance of at least 0.1% and a temperature coefficient of resistance (TCR) value as low as 15 ppm/°C. CPF precision resistors consist of an alumina substrate and a nichrome (NiCr) resistance layer. 100% matte electrotin-plated finish. With a variety of standard case sizes, this chip resistor has uniformly accurate dimensions for easy placement.
- Features • Temperature range: -55 → +155 °C High stability High precision Accurate dimensions Various resistance values are available to suit all applications • Product application information • Suitable applications for CPF precision resistors include industrial control, communications, instrumentation, and medical applications.
Spec
- Quantity: 1 bag (20 pieces)
- Resistance: 309 kohms
- Package/Case: 0603
- Tolerance: +/- 0.1%
- Rated power: 0.063 W
- Temperature factor: +/- 25 ppm/deg.
- Technology: Thin film
- Dimensions: 1.6 x 0.8 x 0.45 mm
- Length: 1.6 mm
- Depth: 0.8 mm
- Height: 0.45 mm
- Series: CPF
- Operating temperature Min: -55 degrees C
- Operating temperature Max: + 155 degrees C
- Case Style: Mold
- RoHS compliance status: Compliance
- Securities Code: 122 -8799
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4996-66 TE Connectivity M Female Connector Housing, 3.81mm Pitch, 14 Way, 3 Row 201298-1
model: 63-4996-66
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments
63-5165-90 1kΩ SMD Trimmer Potentiometer 0.125W Top Adjust Copal Electronics ST-32 Series ST-32EA 1kR
model: 63-5165-90
brand: Copal Electronics
Electronic/Electrical Parts and Controll Equipments

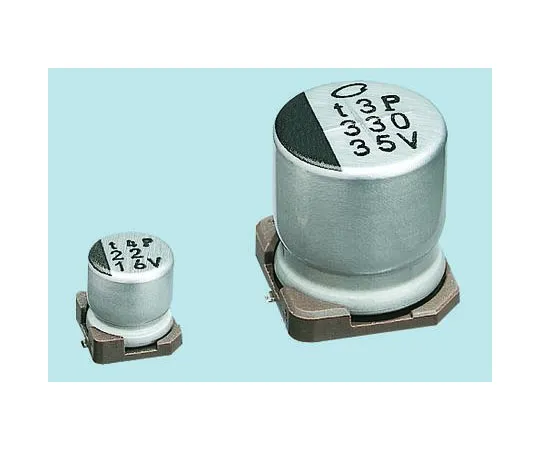

63-7338-37 Nichicon 22μF 35V dc Aluminium Electrolytic Capacitor, Surface Mount 6.3 (Dia.) x 5.4mm +105°C 6.3mm 2.2mm UWT1V220MCL1GB
