63-6863-90 Insulation DC-DC Converter Vout: 5 V dc 18 to 36 V dc 3 W 24 V dc JCA0324S05
Product Description
Product Model: 63-6863-90Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6863-90
Product Brand: XP Power
Features
- XP Power-JCA 2/3 Series DC-DC Converters
- The XP Power JCA 2/3 series is a reliable single/dual output 2/3W insulated DC-DC converter. 2:1 input range, in a 1.0 ” x 0.8 ” metal package with industry standard pin alignment. These compact DC-DC converters have a wide operating temperature range of -40 to +100 °C and are UL and TUV certified.
- 2/3 W Insulated DC-DC Converter Single Output and Dual Output 2:1 Input Range Compact 1.0 x 0.8 inch Metal Package -40 → +100 °C Wide Operating Temperature Range UL and TUV Certified
Spec
- Quantity: 1 piece
- Output Voltage: 5V dc
- Input voltage range: 18 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1.5 kV dc
- Rating Power: 3W
- Output current: 600 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 77%
- Package: DIP 24
- Road regulation: ± 1%
- Maximum temperature: + 100 degrees C
- Series: JCA
- RoHS compliance status: Compliance
- Securities Code: 122 -8701
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7606-34 RS PRO 16A F1 British Standard F***, gG, 550V ac HRC 521-2927
model: 63-7606-34
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

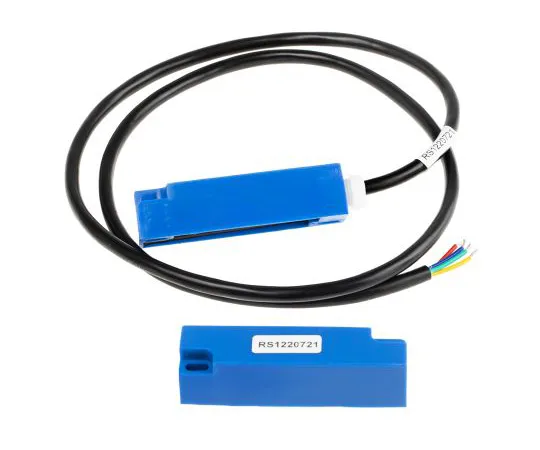

63-6819-41 RS PRO Door and Window Switch 1A, 400V ac 122-0721
