63-6852-14 AC/DC Converter 12 V dc 42 A 500 W with case Y GSP500PS12-EF
Product Description
Product Model: 63-6852-14Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6852-14
Product Brand: XP Power
Features
- XP Power-GSP500 Series AC-DC Power
- XP Power's GSP500 series offers excellent 500 W open frame power. All models are ITE certified and certified for medical ***. All models of this highly reliable compact power supply have a standard efficiency of 90% and standby power of less than 0.5 W. This power supply has a remote on/off function, a standby output power of 5 V with a current capacity of 2 A, and an operating temperature of -40 to +70 °C.
- 500 W, AC-DC Power Universal Input: 85 → 264 V ac ITE Certified and Medical Certified Operating Temperature Range: -40 → +70 °C Standby Power:; 0.5 W efficiency: 90% remote on/off standby output: 5 V/2 A EN55011/22 Level B emission standard
Spec
- Quantity: 1 piece
- Output Voltage: 12 V dc
- Output Current: 42 A
- Rating Power: 500 W
- Number of outputs: 1
- Input Voltage: 80 to 264 V ac
- Mounting Type: Chassis Mount
- Package Type: With Cover
- Length: 170.4 mm
- Width: 101.6 mm
- Depth: 41.9 mm
- Weight: 900 g
- Maximum temperature: + 70 degrees C
- Medical standards certification: Yes
- RoHS compliance status: Compliance
- Securities Code: 122 -7169
Related product recommendations
You may also be interested in the following products
63-4810-12 1.9 V Red LED 5mm Through Hole, ROHM SLI-570UT3F SLI-570UT3F
model: 63-4810-12
brand: ROHM
63-4885-43 JST Uninsulated Crimp Ring Terminal, 4mm Stud Size, 0.25mm² to 1.65mm² Wire Size R1.25-4
model: 63-4885-43
brand: JST

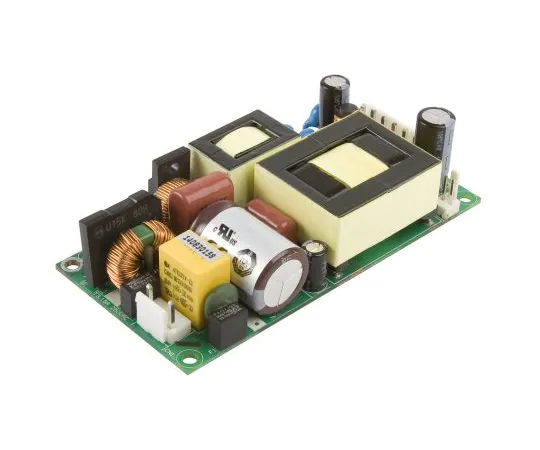

63-6856-31 AC/DC Converter 12 V dc 15 A 180 W Open Frame Y ECP180PS12
model: 63-6856-31
brand: XP Power

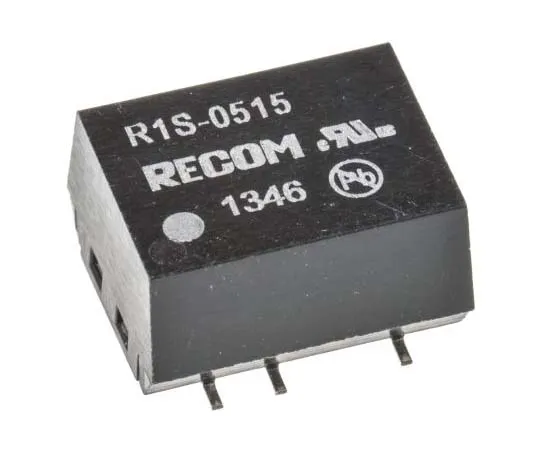

63-7722-85 Recom R1S 1W Isolated DC-DC Converter Surface Mount, Voltage in 4.5 → 5.5 V dc, Voltage out 15V dc R1S-0515
