Electronic/Electrical Parts and Controll Equipments
63-6850-08 Insulation DC-DC Converter Vout: 5 V dc 4.5 to 5.5 V dc 2 W 5 V dc IL0505S
Product Description
Product Model: 63-6850-08Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6850-08
Product Brand: XP Power
Features
- XP Power-IL Series Insulated DC-DC Converter
- The IL series of XP Power is a reliable single-output 2W insulated DC-DC converter. The breakdown voltage is 1000 V dc and is provided in industry-standard SIP packages. Each of these compact DC-DC converters has a wide operating temperature of -40 to +85 °C and a maximum efficiency of 84%.
- 2 W Insulated DC-DC Converter with Insulation Voltage 1000 V dc, 3000 V dc Option Single Output Operating Temperature Range: -40 → +85 °C Industry Standard SIP Packaging Maximum Efficiency: 84%
Spec
- Quantity: 1 piece
- Output Voltage: 5V dc
- Input voltage range: 4.5 to 5.5 V dc
- Input voltage nominal: 5V dc
- insulation Voltage: 1 kV dc
- Rating Power: 2W
- Output current: 400 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 77%
- Packages: SIP
- Road regulation: ± 10%
- Maximum temperature: + 85 degrees C
- Series: IL
- RoHS compliance status: Compliance
- Securities Code: 122 -6955
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-8012-86 Switchcraft S10 Series, Cable Mount Power Jack Plug, 11A S10KS12
model: 63-8012-86
brand: Switchcraft
Electronic/Electrical Parts and Controll Equipments

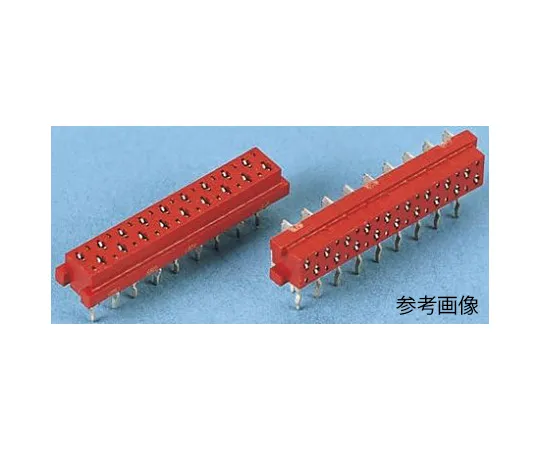

63-4947-89 TE Connectivity Micro-MaTch Series 2.54mm Pitch 4 Way 2 Row Straight PCB Socket, Through Hole, Solder Termination 215079-4
