63-6846-94 Thin-film Chip Resistor 1005 size 0.063 W 221 kohm +/- 0.1% CPF0402B221KE1
model:
63-6846-94
brand:
TE Connectivity
Product Description
Product Model: 63-6846-94Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6846-94
Product Brand: TE Connectivity
Features
- TE Connectivity CPF Series 0402 Precision Resistors (80.6 → 225 kΩ)
- CPF precision resistors consist of an alumina substrate and a nichrome (NiCr) resistive layer. 100% matte electrotin-plated finish. With a variety of standard case sizes, this chip resistor has uniformly accurate dimensions for easy placement. TE Connectivity's CPF series thin film precision resistors offer high stability and precision. This chip resistor has a resistance tolerance of at least 0.1% and a temperature coefficient of resistance (TCR) value as low as 15 ppm/°C.
- Features • High accuracy • High stability • Accurate dimensions • Temperature range: -55 → +155 °C • Various resistance values to suit all applications • Product application information • Suitable applications for CPF precision resistors include communications, industrial control, instrumentation, and medical applications.
Spec
- Quantity: 1 bag (20 pieces)
- Resistance: 221 kohms
- Package/Case: 0402
- Tolerance: +/- 0.1%
- Rated power: 0.063 W
- Temperature factor: +/- 25 ppm/deg.
- Technology: Thin film
- Dimensions: 1 x 0.5 x 0.35 mm
- Length: 1 mm
- Depth: 0.5 mm
- Height: 0.35 mm
- Series: CPF
- Operating temperature Min: -55 degrees C
- Operating temperature Max: + 155 degrees C
- Maximum operating voltage: 25 V
- RoHS compliance status: Compliance
- Securities Code: 122 -6394
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

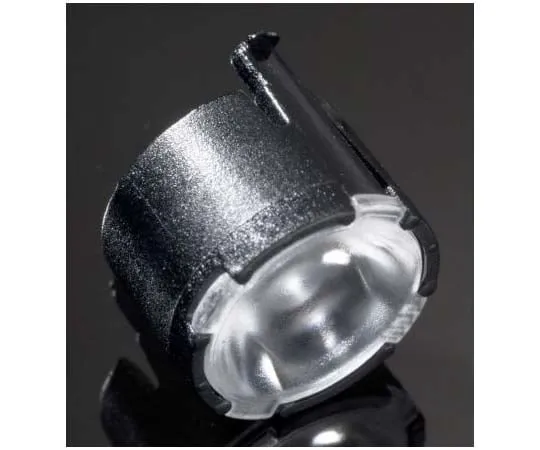

63-7734-88 Ledil FP11076_LISA2-W-CLIP, Lisa2 Series LED Lens, 27 → 49 ° Wide Angle Beam FP11076_LISA2-W-CLIP
model: 63-7734-88
brand: Ledil
Electronic/Electrical Parts and Controll Equipments
63-8063-05 RS PRO 2 wire PT1000 Sensor, -50°C min +250°C max, 10mm Probe Length x 2mm Probe Diameter 891-9151
model: 63-8063-05
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-8178-14 Littelf*** LA Series Metal Oxide Varistor 750pF 100A, Clamping 810V, Varistor 540V V320LA40BP
model: 63-8178-14
brand: Littelfuse
Electronic/Electrical Parts and Controll Equipments

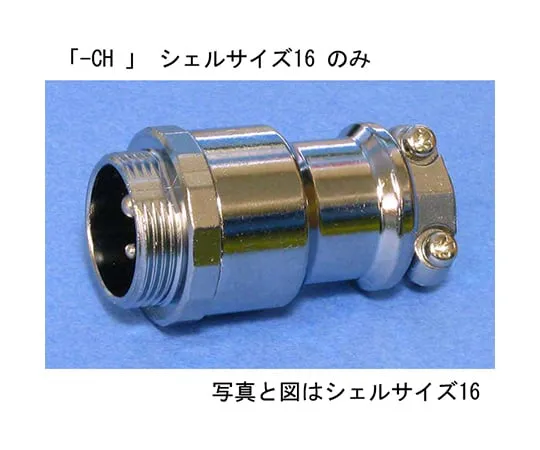

63-3031-25 Metal Outlet NCS-162-AD-CH
