63-6835-16 Insulation DC-DC Converter Vout: ± 12 V dc 42 to 176 V dc 8 W 110 V dc RDD08110D12
Product Description
Product Model: 63-6835-16Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6835-16
Product Brand: XP Power
Features
- XP Power-RDD Series DC-DC Converters The XP Power RDD series is a highly reliable 8W single/dual output DC-DC converter. Designed with industry-standard footprint DIP24 plastic packaging, it features a wide input range for railway applications. All of these high-efficiency DC-DC converters are EN50155 certified for rail applications.
- 8 W DIP24 Plastic Package Operating temperature: -40 → +85 °C Full load 3000 V at ambient temperature 70°C dc Wide input range for insulated railway applications EN50155 Certified for railway applications EN50121-3-2 EMC
Spec
- Quantity: 1 piece
- Output Voltage: ± 12 V dc
- Input voltage range: 42 to 176 V dc
- Input voltage nominal: 110 V dc
- insulation Voltage: 3 (Minimum) kV dc
- Rating Power: 8W
- Output current: ± 335 mA
- Mounting type: through hole
- Number of outputs: 2
- Medical standards certification: None
- Approved for rail ***: Yes
- Package: DIP 24
- Road regulation: ± 0.5%
- Maximum temperature: + 85 degrees C
- Series: RDD
- RoHS compliance status: Compliance
- Securities Code: 122 -4591
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7508-67 Bopla Euromas II, Polycarbonate Enclosure, IP65, Flanged, 122 x 120 x 87mm 62227000
model: 63-7508-67
brand: Bopla
Electronic/Electrical Parts and Controll Equipments
63-6983-33 EPCOS B66230A1114T001 Horizontal Coil Former, 14 Pins B66230A1114T001
model: 63-6983-33
brand: EPCOS
Electronic/Electrical Parts and Controll Equipments

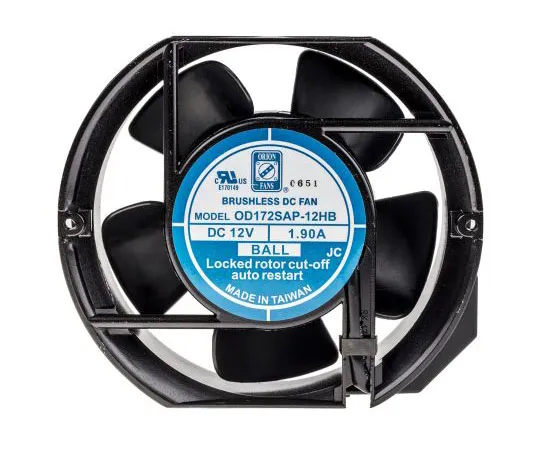

63-7646-51 RS PRO Axial Fan, 172 x 51mm, 230cfm, 5W, 12 V dc 624-6577
model: 63-7646-51
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

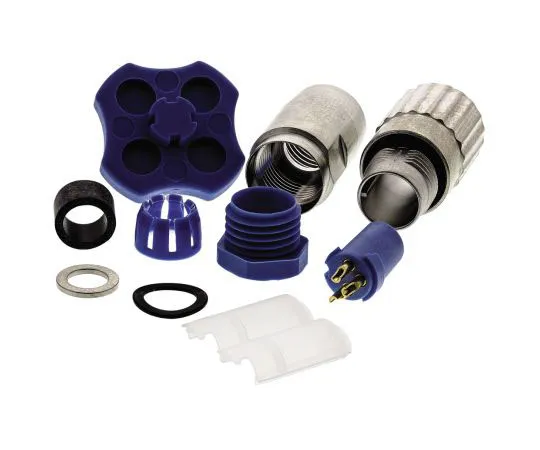

63-7454-63 TE Connectivity TRIAD™ 01 Series Subminiature Cable Mount Connector, 3 contacts Socket 3-1437719-0
