Electronic/Electrical Parts and Controll Equipments
63-6789-95 RS PRO 30 A SP Solid State Relay, DIN Rail, 530 Vrms Maximum Load 121-3896
Product Description
Product Model: 63-6789-95Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6789-95
Product Brand: RS PRO
Features
- RS Pro SD30 DIN Rail Slim SSR
- The RS Pro SD30 Series solid-state relay offers a compact solution without sacrificing performance or reliability. Slim 22.5 mm wide package with a wide range of input and output options.
- Features: Maximum load current: 30 A Output voltage: 48 to 530 V ac Integrated heat sink standard 35 mm Can be mounted on DIN rail LED input status indicator AC or DC control IP20 contact protection housing
Spec
- Maximum Load Current:30 A
- Mounting Type:DIN Rail
- Minimum Load Voltage:48 Vrms
- Maximum Load Voltage:530 Vrms
- Minimum Control Voltage:4 V dc
- Maximum Control Voltage:32 V dc
- Contact Configuration:SP
- Terminal Type:Screw
- Dimensions:93.2 x 22.5 x 116.5mm
- Control Voltage Range:4 → 32 V dc
- CODE No.:121-3896
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7478-91 Dormer HSS M15 Straight Flute Thread Tap, 70 mm Length E105-M15/1,50
model: 63-7478-91
brand: Dormer
Electronic/Electrical Parts and Controll Equipments

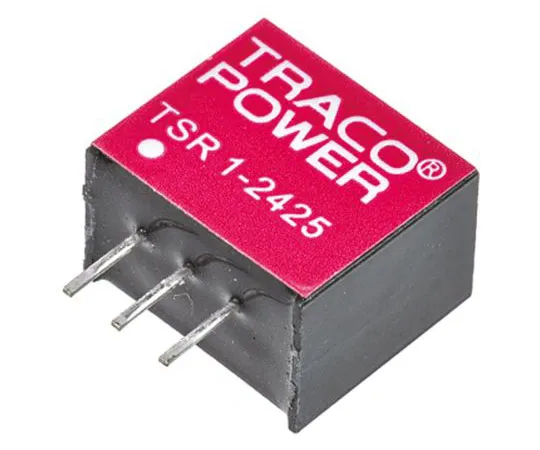

63-7659-01 TRACOPOWER Switching Regulator, 4.6 → 36V dc Input, 2.5V dc Output, 1A TSR 1-2425
