Electronic/Electrical Parts and Controll Equipments
63-6787-65 Ribbon cable 34 core shielded 30 m 3659-34
Product Description
Product Model: 63-6787-65Product Brand: 3M Company Feat […]
Contact Us
Product Details
Product Model: 63-6787-65
Product Brand: 3M Company
Features
- UL Certified
- These cables are not int***ed as power cables or cables for direct connection to the main power source of the equipment.
- Shielded Round Type 1.27 mm Pitch Ribbon Cable - Type 3659
- ・ Stranded Tin-plated Copper Conductor Insulated with Black PVC ・ Aluminized Polyester Tape and Tin-plated Copper Blade Allows Large Termination by Repeated Double Shielding, Splitting/Joining • UL AWM Standard 20267
Spec
- Quantity: 1 reel (30 meters)
- Number of poles: 34
- Width: 41.9 mm
- Pitch: 1.27 mm
- Reel length: 30 m
- Allowable Voltage: 300 V
- Capacity: 90.88 pF/m
- Characteristic Impedance: 106 ohms
- Operating temperature Min: -20 degrees C
- Operating temperature Max: + 80 degrees C
- Sheath color: black
- RoHS compliance status: Compliance
- Securities Code: 120 -9135
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4601-01 RS PRO Nylon Snap Grip, 15mm - 17.8mm Inside Diameter 291-650
model: 63-4601-01
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
Electronic/Electrical Parts and Controll Equipments
63-4877-47 Phoenix Contact COMBICON PT PCB Terminal Block, 3 Way/Pole, Screw Terminals, 20 → 10 AWG Through Hole, Nylon, 1935789
model: 63-4877-47
brand: Phoenix Contact
Electronic/Electrical Parts and Controll Equipments

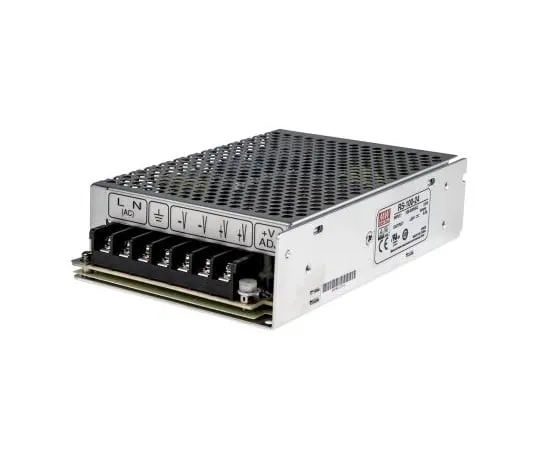

63-4894-50 Mean Well 108W 1 Output Embedded Switch Mode Power Supply SMPS, 4.5A, 24V dc Enclosed RS-100-24
