61-7648-12 Tube Fitting PP Elbow M5 x 0.8 Clean Package PPL4-M5SUS-C
Product Description
Product Model: 61-7648-12Product Brand: NIHON PISCO CO. […]
Contact Us
Product Details
Product Model: 61-7648-12
Product Brand: NIHON PISCO CO., LTD.
Features
- The main body ***s PP suitable for a clean environment.
- The metal part is made of SUS304.
- Oil resistant.
- The color of the resin body is clear (translucent) and fluid can be checked.
- Clean with clean air and wrap in a clean room (ISO Class 6 equivalent).
Spec
- Fluid ***d: Air, Water (*1. water, When you *** liquid, Keep surge pressure to the maximum operating pressure or less. 2. Water, When you *** liquid, Be sure to *** an insert ring. )
- Fluid ***d: Other chemicals (*1. water, When you *** liquid, Keep surge pressure to the maximum operating pressure or less. 2. Water, When you *** liquid, Be sure to *** an insert ring. 3. Chemicals, Solvent, for mixed gas, etc., Conformity of our specifications may vary dep***ing on usage conditions. Please contact with the nearest office. )
- Maximum operating pressure: 1.0MPa (0 - 20℃)
- Used vacuum pressure: -100kPa
- Operating temperature range: 0 - 80℃ (seal rubber material: 0 - 60℃ for NBR specification)
- RoHS supported
- Resin may degrade by direct sunlight and ultraviolet ray.
- Shape: Elbow
- Applicable tube size (outer diameter): φ4mm, φ5/32inch
- Applied screw size: M5 x 0.8
- Screw body material: Stainless Steel (SUS304)
- Rubber material: EPDM
- Seal specification: Sealock, without seal tape
- Cleaning, packaging specification: without clean washing, clean room packaging
Related product recommendations
You may also be interested in the following products
automaticdiluter
62-9844-46 ［Discontinued］Toaron Tube G1mm x 3mm x 100m
model: 62-9844-46
brand: KOKUGO Co., Ltd.
automaticdiluter

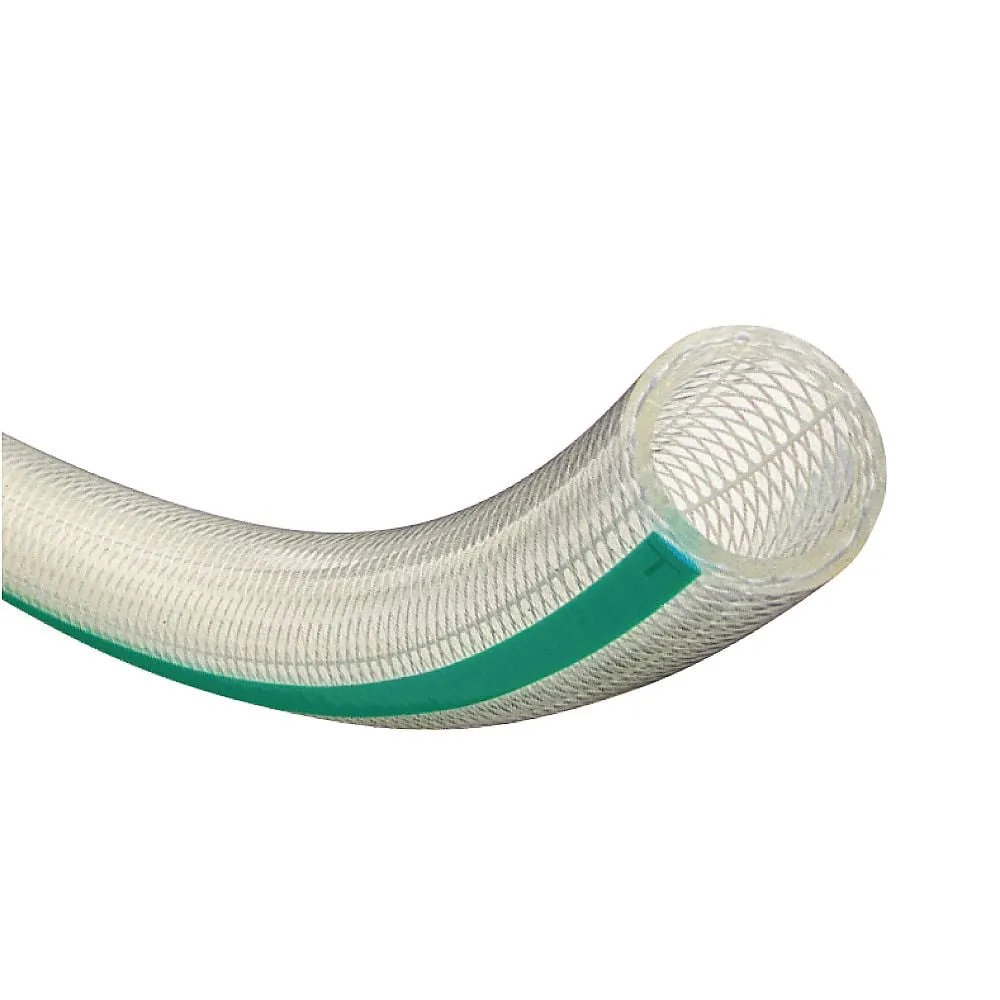

65-0863-33 Toyo Foods Hose for transportation of various foods and drinking water, etc. TFB-10-1
