63-6680-15 RS PRO 200VA Isolating Transformer, 230 V ac, 245 V ac, 400 V ac, 415 V ac Primary 1 x, ±12V ac Secondary 504-173
Product Description
Product Model: 63-6680-15Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6680-15
Product Brand: RS PRO
Features
- Control Panel Primary 230/ 400Vac with +15Vac Tap
- High quality safety and isolating transformers designed for *** in control circuits and general applications Low loss noise laminations
- Dual standard primary winding 230/400Vac with +15V tap for input flexibility
- Dual secondaries are centre tapped
- Earth terminal provided
- Varnish impregnated for overall protection against humidity and rusting Fully shrouded cage clamp terminal with voltage markings Detailed product specification on permanent label
- High efficiency, low regulation design
Spec
- Primary Voltage Rating:230 V ac, 245 V ac, 400 V ac, 415 V ac
- Secondary Voltage Rating:±12V ac
- Power Rating:200VA
- Mounting Type:DIN Rail
- Number of Outputs:1
- Length:108mm
- Width:114mm
- Depth:110mm
- Dimensions:108 x 114 x 110mm
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- Maximum Temperature:+35°C
- Weight:5kg
- CODE No.:504-173
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

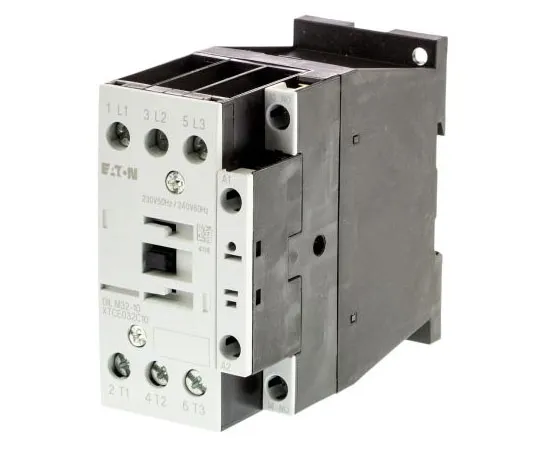

63-7585-23 Eaton 3 Pole Contactor, 32 A, 230 V ac Coil, xStart, 3NO, 15 kW 277260 & DILM32-10(230V50HZ,240V60HZ)
