65-1829-81 Mass Spectrometer with Differential Exhaust System Kit Qulee with YTP-H
Product Description
Product Model: 65-1829-81Product Brand: ULVAC, Inc. Fea […]
Contact Us
Product Details
Product Model: 65-1829-81
Product Brand: ULVAC, Inc.
Features
- Highly sensitive specifications with excellent cost performance. Equipped with a differential exhaust system, a single unit can handle everything from process monitoring to residual gas analysis (RGA).
- Compact design Compact design with Desktop YTP standard exhaust unit
- Design of integrated display
- Measurable even without a PC
- Easy to *** OneClick feature (Easy for everyone, no complexity)
- Low noise: Low noise design with an operating sound of 43dB (A) or less
- Enhancement of leak testing functions
- Helium leak test, air leak test and build-up test possible
- Standard with Quree QCS(Ver. 4) with Ethernet (Windows7/8/10)
Spec
- Gas Analyzer Body: QuleeBGM2-202
- Maximum sampling pressure: 1 Pa
- Vacuum type gas introduction system (3000~1 Pa type): manual bellows valve (2 systems), mounting flange ICF070
- Measured mass range: 1~200amu (BGM2-202)
- Exhaust Unit DesktopYTP (YTP70A-D)-AC
- Turbomolecular pump: exhaust speed 70 L/s (N2)
- YTP Dry Pump: Exhaust Speed 20 L/min (Diaphragm Type)
- Reaching pressure: 10-6 Pa level
- Input Voltage: Single-phase AC100~240 V, 300 W
- Software: QuleeQCSVer. 4.0 or later (for Windows7/8/10)
- *Please let us know how you want to *** the product beca*** we need to confirm its ***.
Related product recommendations
You may also be interested in the following products
toner
toner
61-9740-28 Gas Detector Tube 176UH Methyl Iodide 11017610
model: 61-9740-28
brand: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.
toner

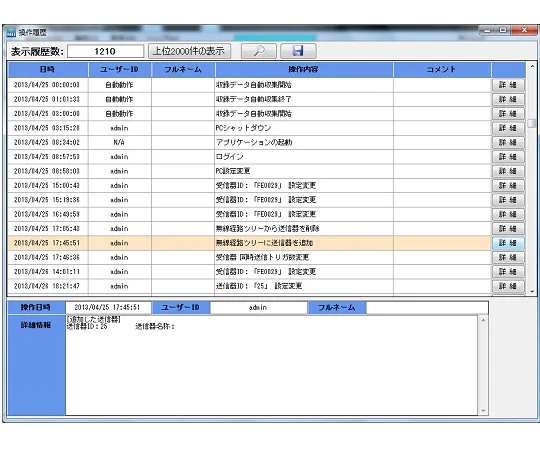

67-4913-99 Md8000 Series Application Software With Security Function MD800A-11U
