63-3118-41 Small Waterproof Plastic Connector (6 Pole) HR30-6P-6S31
Product Description
Product Model: 63-3118-41Product Brand: Hirose Features […]
Contact Us
Product Details
Product Model: 63-3118-41
Product Brand: Hirose
Features
- HR30 series small waterproof plastic connector with full water resistance (as specified). Follow the instructions for the assembly method and necessary jigs and tools to achieve waterproof performance. The HR30 series is a waterproof connector, but not for underwater ***. According to the specifications, the connector must be kept in a water depth of 1 m for 0.5 hours with the connector fitted.
Spec
- Connector shape plug
- Rated current 2A
- Rated voltage (AC) 100 VAC
- Rated voltage (DC) 140 VDC
- Number of Poles 6
- Operating temperature range -25°C to +85 °C
- Waterproof Performance IP68
- Withstanding Voltage 300 V (max)
- Lock Method Push Pull
- connection method soldering
- Cable Outer Diameter 4.6 mm
- Number of Insertion and Removal 1000
- No Finger Protect
- No shield function
- contact plated metal
- Salt spray time (corrosion resistance) 48h Exterior material Plastic
- [Mechanical Performance]
- Contact Sex Female
- Housing Color Black
- Opening Direction Straight Key None
- [Product Size]
- Applicable Wire Size AWG26
- Body Length 12.6 mm
- Body Width 12.6 mm Body Height 29.8 mm
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7608-99 10kΩ Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns 3386 Series 3386G-1-103LF
model: 63-7608-99
brand: Bourns
Electronic/Electrical Parts and Controll Equipments
63-5026-91 Hirose DH Series, 37 Way Rectangular Connector Socket, 1mm Pitch DH40-37S
model: 63-5026-91
brand: Hirose
Electronic/Electrical Parts and Controll Equipments

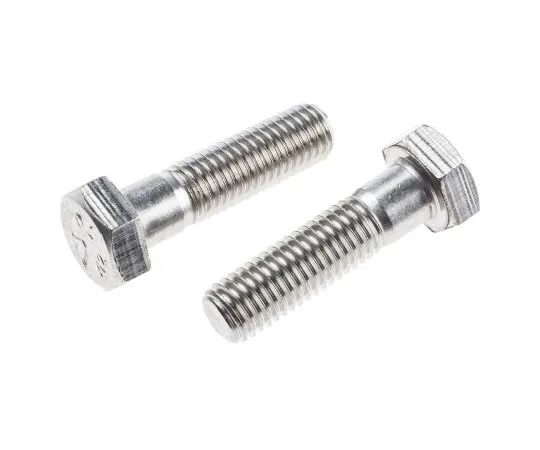

63-7997-79 Plain Stainless Steel Hex Bolt, M12 x 45mm 797-6308
