63-5103-05 Bourns 4600X Series 15kΩ ±2% Bussed Through Hole Resistor Array, 8 Resistors, 1.13W total SIP package 4609X-101-153LF
Product Description
Product Model: 63-5103-05Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-5103-05
Product Brand: Bourns
Features
- 8-Bussed Resistors. From Bourns, the 4600X series of 8-bussed array resistors have a broad resistance range and are suitable for a range of applications. Constructed from a flame retardant epoxy resin body, these network resistors offer protection against shock, heat and moisture. Features and benefits:. Low profile. Range of pin packages enables you to be flexible with your designs. Marking on contrasting background enables permanent identification. Resistance options available from 10 Ω to 10 MΩ
Spec
- Quantity：1bag(25pieces)
- Resistance : 15kΩ
- Number of Resistors : 8
- Package/Case : SIP
- Power Rating : 1.13W
- Tolerance : ±2%
- Case Style : Conformal
- Power Rating per Resistor : 0.2W
- Circuit Designator : BUS
- Length : 22.81mm
- Depth : 2.49mm
- Height : 5.08mm
- Dimensions : 22.81 x 2.49 x 5.08mm
- Series : 4600X
- Temperature Coefficient : ±100ppm/°C
- CODE No.:788-4076
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7378-33 ILS ILH-LS01-DEBL-SC201-WIR200., LUXEON Sunplus 35 Circular LED Array, 1 Royal Blue LED ILH-LS01-DEBL-SC201-WIR200.
model: 63-7378-33
brand: Intelligent LED Solutions
Electronic/Electrical Parts and Controll Equipments
63-2999-85 RS PRO 470μF 50V dc Aluminium Electrolytic Capacitor, Through Hole 10 (Dia.) x 20mm +105°C 10mm 5mm 20mm 711-1475
model: 63-2999-85
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-4585-16 RS PRO Green Indicator, 12 V dc, 8mm Mounting Hole Size, Lead Wires Termination 204-079
model: 63-4585-16
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

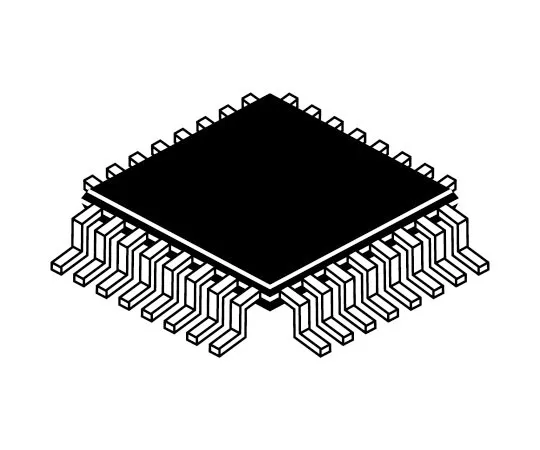

63-8091-49 STMicroelectronics, 32bit ARM Cortex M0 Microcontroller, 48MHz, 16 kB Flash, 32-Pin LQFP STM32F051K4T6
