Electronic/Electrical Parts and Controll Equipments
63-5065-57 8 Way Through Hole DIP Switch SPST, Flush Slide Actuator ADF08T04
model:
63-5065-57
brand:
TE Connectivity
Product Description
Product Model: 63-5065-57Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-5065-57
Product Brand: TE Connectivity
Features
- Unless stated otherwise, these switches are not suitable for immersion cleaning. TE Connectivity ADE and ADF Series DIP Switches. ADE and ADF series through hole mounting 7.5 x 3.5mm DIP switches with a 2.54mm centerline, gold flash plated contacts and black PPS housings. The ADE series DIP switches have ext***ed slide actuators whilst the ADF series DIP switcheshave flush slide actuators. Both versions of these DIP switches have a high pressure contact system and are auto insertable. High pressure wiping contact allows aqueous or solvent cleaning without tape seal Can withstand vapour phase reflow or wave soldering conditions Contact resistance: 50mΩ
Spec
- Quantity：1piece
- Contact Configuration : SPST
- Contact Current Rating : 100 mA@ 24 V dc
- Contact Material : Copper Alloy
- Number of Positions : 8
- Mounting Type : Through Hole
- Actuator Type : Flush Slide
- Package Style : DIP
- Mechanical Life : 1000Cycles
- Maximum Operating Temperature : +85°C
- Minimum Operating Temperature : -30°C
- Operating Temperature Range : -30 → +85°C
- CODE No.:756-1344
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

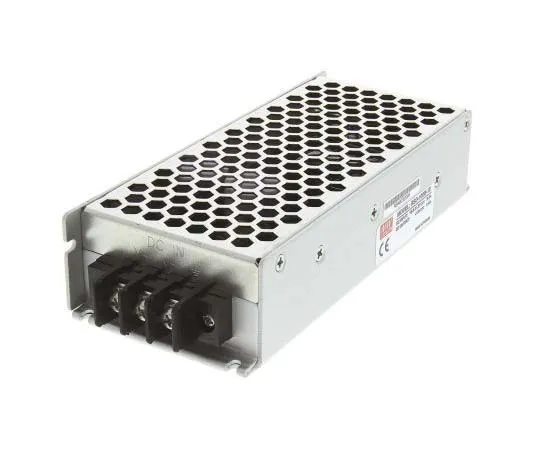

63-7759-45 Mean Well RSD 100 100.8W Isolated DC-DC Converter Chassis Mount, Voltage in 14.4 → 33.6 V dc, Voltage out 12V dc RSD-100B-12
model: 63-7759-45
brand: Mean Well
Electronic/Electrical Parts and Controll Equipments
63-8188-55 KEMET 3.3μF Polyphenylene Sulphide Film Capacitor PPS 30 V ac, 50 V dc ±5% SMC SMD SMC16.5335J50C31TR24
model: 63-8188-55
brand: KEMET
Electronic/Electrical Parts and Controll Equipments
63-7742-33 Epcos 220nF Polyester Capacitor PET 200 V ac, 400 V dc ±10% B32523 Series Through Hole B32523Q6224K189
model: 63-7742-33
brand: EPCOS
Electronic/Electrical Parts and Controll Equipments

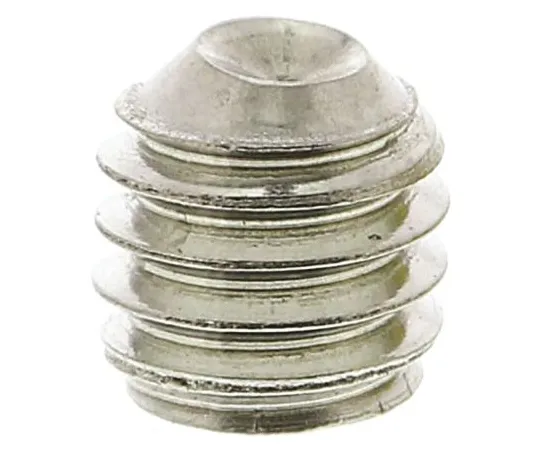

63-4568-08 Plain Stainless Steel Hex Socket Set M4 x 4mm Grub Screw 137-742
