63-5025-85 Murata LQW18A Series Type 0603 (1608M) Wire-wound SMD Inductor 100 nH ±2% Wire-Wound 220mA Idc Q:34 LQW18ANR10G00D
Product Description
Product Model: 63-5025-85Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-5025-85
Product Brand: Murata
Features
- Murata 0603 LQW18AN Series Wire Wound Inductors. High quality coil inductors designed for VHF and UHF applications. High resonance frequency. Low tolerance of inductance values. Models with the suffix '10D' have lower DC resistance values. Applications : High frequency circuits for wireless telecommunications equipment: Bluetooth, GSM, W-LAN.
Spec
- Quantity：1bag(10pieces)
- Inductance : 100 nH
- Maximum DC Current : 220mA
- Package/Case : 0603 (1608M)
- Length : 1.6mm
- Depth : 0.8mm
- Height : 0.8mm
- Dimensions : 1.6 x 0.8 x 0.8mm
- Tolerance : ±2%
- Maximum DC Resistance : 680mΩ
- Series : LQW18A
- Maximum Self Resonant Frequency : 1.8GHz
- Minimum Quality Factor : 34
- CODE No.:724-2857
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

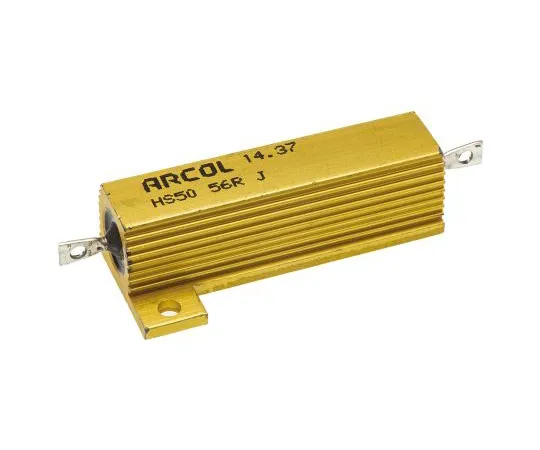

63-4746-51 Arcol HS50 Series Aluminium Ho***d Axial Wire Wound Panel Mount Resistor, 56Ω ±5% 50W HS50 56R J
