63-5009-78 Murata 300 μH ±10% Bobbin Inductor, Max SRF:1.7MHz, Q:28, 5A Idc, 80mΩ Rdc 1400 1430450C
model:
63-5009-78
brand:
Murata Power Solutions
Product Description
Product Model: 63-5009-78Product Brand: Murata Power So […]
Contact Us
Product Details
Product Model: 63-5009-78
Product Brand: Murata Power Solutions
Features
- Murata 1400 Series High Current Radial Inductors. Designed for *** in power line applications such as switching regulators, filters and suppression circuits Constructed from high saturation flux density material enabling *** in high current applications Suitable for PCB or chassis mounting using a non-magnetic fastener via the central fixing hole Terminated with easy-strip pre-tinned enamelled copper leads Lead length 10mm Operating temperature: -40 → +85°C Inductance Tolerance: ±10%
Spec
- Quantity：1piece
- Inductance : 300 μH
- Maximum DC Current : 5A
- Mounting Type : Radial
- Maximum DC Resistance : 80mΩ
- Tolerance : ±10%
- Length : 33.3mm
- Depth : 31.3mm
- Height : 23.3mm
- Dimensions : 33.3 x 31.3 x 23.3mm
- Maximum Self Resonant Frequency : 1.7MHz
- Lead Pitch : 29mm
- Series : 1400
- Minimum Quality Factor : 28
- CODE No.:715-6787
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4997-50 TE Connectivity TERMINYL Series Insulated Crimp Ring Terminal, M5 Stud Size, 6.6mm² to 10.5mm² Wire Size, Red 324043
model: 63-4997-50
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments

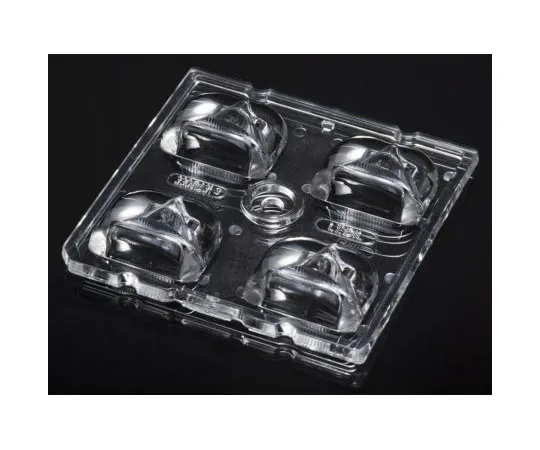

63-8076-61 Ledil C13301_STRADA-2X2-T3, Strada-Module Series 4-Way LED Lens, Square Beam C13301_STRADA-2X2-T3
