1-9822-01 ONDOTORI Atmospheric and Thermo-Hygro Data Logger TR-73U
Product Description
Product Model: 1-9822-01Product Brand: T&D Corporat […]
Contact Us
Product Details
Product Model: 1-9822-01
Product Brand: T&D Corporation
Features
- Displays pressure, temperature, and humidity on the same graph.
Spec
- Model number: TR-73U
- Size: 78 x 18 x 55mm
- Number of channels: Temperature 1 ch/humidity 1 ch/atmospheric pressure 1 ch
- Storage capacity: 8000 x 3
- Communication system: USB, serial
- Power supply: AA dry cell x 1 (included)
- Accessories: Thermo-hygro sensor (TR-3100), USB cable, Software
- Measurement range: (Temperature) -10 - 60℃, (Humidity) 10 - 95%RH, (Atmospheric pressure) 750 - 1100hPa
- Measurement accuracy: (Temperature) average ±0.3℃, (Humidity) ±5%RH, (Atmospheric pressure) ±1.5hPa
- Measurement display resolution: (Temperature) 0.1℃, (Humidity) 1%RH, (Atmospheric pressure) ±0.1hPa
- Sensor: (Temperature) Thermistor, (Humidity) Polymer humidity sensor, (Atmospheric pressure) Atmospheric pressure sensor
- Recording interval: Selection from total 15 alternatives of 1, 2, 5, 10, 20, 30 seconds, 1, 2, 5, 10, 15, 20, 30, 60 minutes
- Recording capacity: 8000 data x 3 channels
- Power supply: AA alkaline battery (L6) x 1
- Interface: USB communication/serial communication (RS-232C)
- Accessories: AA alkaline battery (LR6) x 1, USB communication cable (US-15C) x 1, thermo-hygro sensor (TR-3100) x 1, soft wear 1 set
- RoHS3 (EU)2015/863 Certificates can be issued
Related product recommendations
You may also be interested in the following products
toner
65-4291-13-20 Normal Pressure Gauge (Φ150) Vertical B Frame for Vibration Resistance with 10 MPa with Inspection Certificate AG10-233
model: 65-4291-13-20
brand: NAGANO KEIKI Co., Ltd.
toner

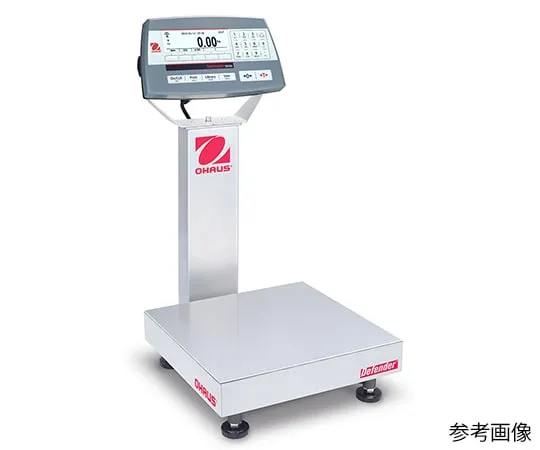

63-5729-47 Digital Platform Scale D 5000 Series 3/6 kg 0.2/0.5 g D52P6RQDR1JP
model: 63-5729-47
brand: OHAUS Corporation
toner

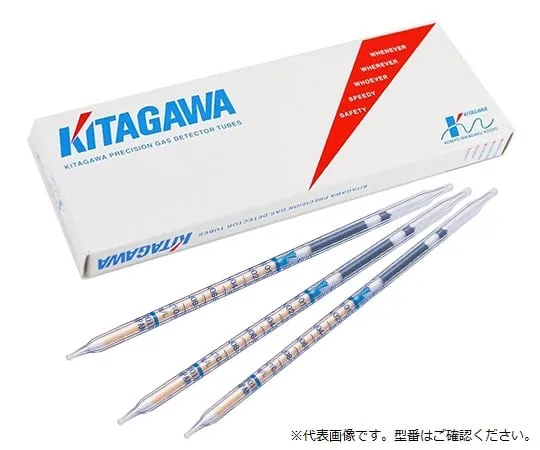

61-9736-68 Gas Detector Tube 179S Ethylbenzene 11017900
