63-4852-97 Bourns 1 Gang Rotary Conductive Plastic Potentiometer with a 6.35 mm Dia. Shaft, 100kΩ, ±20%, 0.25W, CW Audio 91A1A-B28-D20L
Product Description
Product Model: 63-4852-97Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4852-97
Product Brand: Bourns
Features
- Metal lock washer and nut. 16 mm 91 Series. Bourns 91 Series are single turn, rotary linear potentiometers. Features and Benefits: Available in various pin-out configurations One piece shaft and rotor assembly Panel and PCB mountable Conductive plastic resistance element Linear and audio (log) output track options Long mechanical life (100000 cycles) Plastic or metal slotted shaft
Spec
- Quantity：1piece
- Potentiometer Type : Rotary
- Maximum Resistance : 100kΩ
- Number of Gangs : 1
- Number of Turns : 1
- Power Rating : 0.25W
- Electrical Taper : CW Audio
- Element Material : Conductive Plastic
- Mounting Type : Panel Mount
- Termination Style : PC Pin
- Shaft Length : 22.2mm
- Shaft Diameter : 6.35 mm
- Tolerance : ±20%
- Series : 91
- CODE No.:522-5175
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4923-40 Metal Oxide Film Resistor MOS3 Series 1.5 kΩ3 W ± 2% MOS3C152G
model: 63-4923-40
brand: KOA
Electronic/Electrical Parts and Controll Equipments
63-7802-21 IPP110N20N3GXKSA1 N-Channel MOSFET Transistor, 88 A, 200 V OptiMOS 3, 3-Pin TO-220 Infineon IPP110N20N3GXKSA1
model: 63-7802-21
brand: Infineon
Electronic/Electrical Parts and Controll Equipments
63-6695-12 Zinc plated & clear Passivated Steel Hex M5 x 16mm Set Screw 525-830
model: 63-6695-12
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

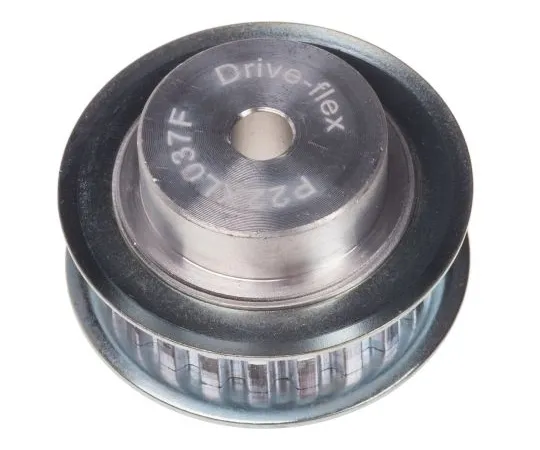

63-6572-39 RS PRO Timing Belt Pulley, Aluminium 14.3mm Belt Width x 5.08mm Pitch, 22 Tooth 182-644
