Electronic/Electrical Parts and Controll Equipments
63-4850-60 10kΩ Through Hole Trimmer Potentiometer 0.5W Side Adjust Bourns 3296 Series 3296X-1-103LF
Product Description
Product Model: 63-4850-60Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4850-60
Product Brand: Bourns
Features
- Side Adjust 3296X Series. Bourns® 3296X Series 3/8" Square Multiturn Cermet Trimming Potentiometer (Trimpot®). Slim body profile - higher packing density Sealed to withstand immersion board washing Moulded body with built-in stand-offs Large screw slot for easier adjustment Wiper idles at *** travel Slim body profile-higher packing density Sealed to withstand immersion board washing Flame retardant plastic housing Double chevron shaft seal Moulded body with built in stand offs IC style pins for PCB assembly Precious metal wiper for set point stability
Spec
- Quantity：1piece
- Maximum Resistance : 10kΩ
- Mounting Type : Through Hole
- Number of Turns : 25
- Orientation : Side Adjust
- Power Rating : 0.5W
- Series : 3296
- Termination Style : Pin
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- Length : 11.05mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- CODE No.:521-9861
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-8404-21 RS 100kΩ 2W Fixed Resistor ±5% -700 → 0ppm/°C 740-0924
model: 63-8404-21
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

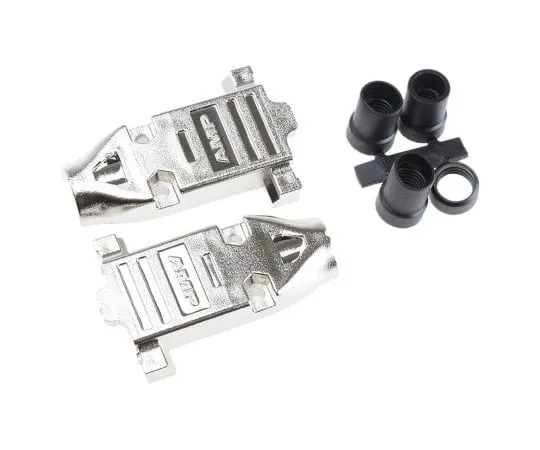

63-4949-47 TE Connectivity Amplimite HD-20 Series Metal Plated Plastic D-sub Connector Backshell, 9 Way 5748677-1
