65-3535-39 ［Out of stock］Built-in Temperature Sensor for Moving Rotating Surface UH Series with ISO Document -50~210°C Type 17 E Type UH-17E-03-TS1-W
Product Description
Product Model: 65-3535-39Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3535-39
Product Brand: ANRITSU METER CO., LTD.
Features
- The UH series is a built-in temperature sensor for moving and rotating surfaces suitable for measuring the surface temperature of rollers in narrow areas.
- [Application] Surface temperature control and temperature measurement of printer roller, etc.
Spec
- Operating temperature range (°C): -50~210
- Tolerance at 0~100 deg. C (deg. C): ±2.5
- Response Time (sec): 4
- Fixing plate shape: Type 17
- Thermocouple Type: E Type
- Length of connecting wire (mm): 300
- Cord length (m): 1
- Cord Outer Diameter (φmm): 2.3
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Off
- Calibration Temperature Point: 100, 200°C
- Document content: Inspection report, calibration certificate, traceability system diagram
Related product recommendations
You may also be interested in the following products
toner
64-4054-27 Dust Control Waterproofing Digital Scale HW-CWP Series With JCSS Proofing HV15KCWP-JA-00J00
model: 64-4054-27
brand: A&D
toner

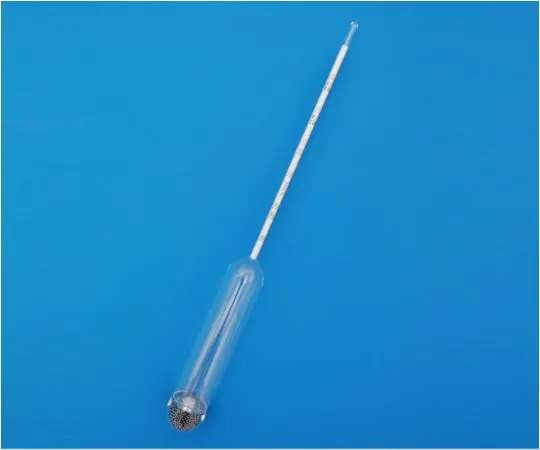

63-1461-78 Sake Tester,Taz Administation Breau type KNS-3025
