65-3535-17 ［Out of stock］Thin/Narrow Groove Temperature Sensor TH Series with ISO Document Set -50~400°C Type 11 Type E TH-11E-010-1-TC1-ASP
Product Description
Product Model: 65-3535-17Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3535-17
Product Brand: ANRITSU METER CO., LTD.
Features
- The TH series is a temperature sensor that can be inserted into gaps and grooves to measure the surface temperature of the side and bottom surfaces.
- [Application] Temperature control and temperature measurement during heat sink performance tests, etc.
Spec
- Material: Grip Material/Black Phenol Resin
- Operating temperature range (°C): -50~400
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 2
- Durability: 50,000 cycles or more
- Head Shape: Type 11
- Type of thermocouple: Type E
- Head length (mm): 100
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
- Calibration Temperature Point: 100, 200, 400°C
Related product recommendations
You may also be interested in the following products
toner
61-4673-04-57 Thermocouple Thermometer (K type) with Chinese Calibration Certificate AD-5605H
model: 61-4673-04-57
brand: A&D
toner

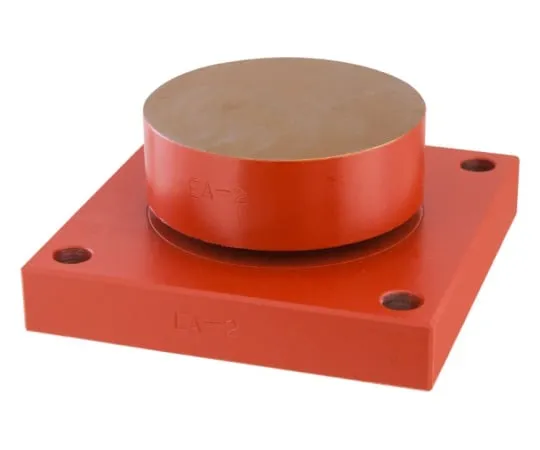

62-3150-32 Expansion Relief Metal Bracket for CP/C2Z1/C2F1/CMX EA-2
