65-3534-97 ［Out of stock］Temperature Sensor Contact Support for High Performance Static Surfaces Type SX Series with ISO Documents -50~800°C 90° 100 mm Type E SX-173E-01-1-TPC1-ASP
Product Description
Product Model: 65-3534-97Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3534-97
Product Brand: ANRITSU METER CO., LTD.
Features
- The SX series is a high-performance temperature sensor with a "±4° contact support function" that allows the sensor's temperature sensitive part to follow and adhere to the object to be measured.
- High-level measurement that pursues response speed and durability can be easily performed.
- [Application] Preheating temperature control and temperature measurement of billets, etc.
Spec
- Material: Head Material/Stainless Steel (SUS304), Pipe Material/Stainless Steel (SUS316), Contact Plate Material/Inconel Thickness, Grip Material/Polyacetal
- Operating temperature range (°C): -50~800
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 1
- Durability: More than 60,000 cycles at 800°C
- Head Size (φmm): 15
- Head Type: High Temperature Type
- Pipe Shape: 90°
- Type of thermocouple: Type E
- Pipe length (mm): 100
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 3.8
- Coating Material: Polyurethane
- Heat-resistant Temperature (°C): 110
- Plug Shape: Standard Plug
- Calibration Temperature Point: 100, 300, 500°C
- Document content: Inspection report, calibration certificate, traceability system diagram
Related product recommendations
You may also be interested in the following products
toner
61-9628-95 ［Discontinued］Digital Platform Scale Tested 350 x 300mm 3kg (Scale Interval 1G) DP-5601-3
model: 61-9628-95
brand: YAMATO-SCALE Co., Ltd.
toner

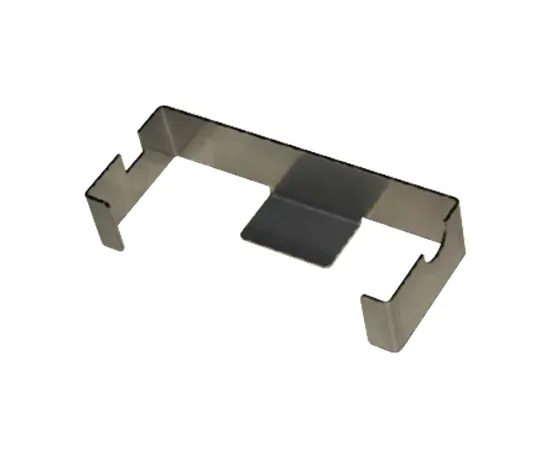

68-6771-76 Wireless Watcher (Wireless Logger With Monitoring Function) Mounting Holder Battery Specification Double-Sided Tape Mounting For Transmitter MD9010
model: 68-6771-76
brand: CHINO CORPORATION
toner

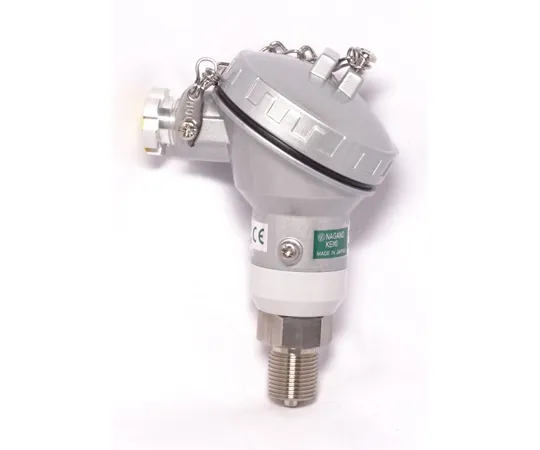

65-4328-61 Pressure Transmitter Analog Output 4~20 mA DC 0.1 MPa KH15-J33
model: 65-4328-61
brand: NAGANO KEIKI Co., Ltd.
toner

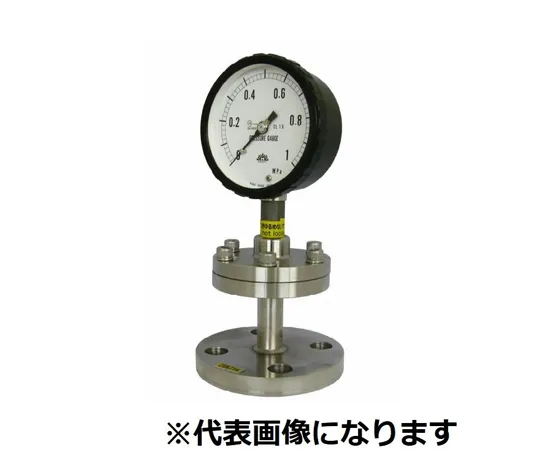

65-3525-37 Diaphragm Type Vacuum Gauge Flange Type A Pressure Range (MPA)-0.1 841-A-AD-25A-FF-5X-0.1MPA
