65-3534-07 ［Out of stock］Temperature Sensor S Series for High Performance Self-Weight Static Surface -50~600°C E Type with ISO Documents S-780E-GW1-ASP
Product Description
Product Model: 65-3534-07Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3534-07
Product Brand: ANRITSU METER CO., LTD.
Features
- The S Series (S-7**) is a high-performance self-weight temperature sensor with a head shape of φ40 mm and a mass of approximately 380 g that enables stable measurement.
- [Application] Temperature measurement of a die (die bonder) for semiconductor manufacturing equipment
- Induction heating steel burette surface temperature control and temperature measurement, etc.
- Temperature control and temperature measurement during the rolling process of metals and steel plates
- Measuring temperature between passes during welding
Spec
- Weight: about 380 g
- Material: Contact Column Material/Ceramic, Contact Plate Material/Inconel 50 μm, Body Material/Stainless Steel (SUS303)
- Operating temperature range (°C): -50~600
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 1
- Durability: More than 60,000 cycles at 600°C
- Type of contact: high temperature contact
- Thermocouple Type: E Type
- Cord length (m): 1
- Cord Outer Diameter (mm): 1.2 x 1.7
- Coating Material: Glass Fiber
- Heat-resistant Temperature (°C): 300
- Plug Shape: Standard Plug
- Calibration Temperature Point: 100, 300, 500°C
- Document content: Inspection report, calibration certificate, traceability system diagram
Related product recommendations
You may also be interested in the following products
toner

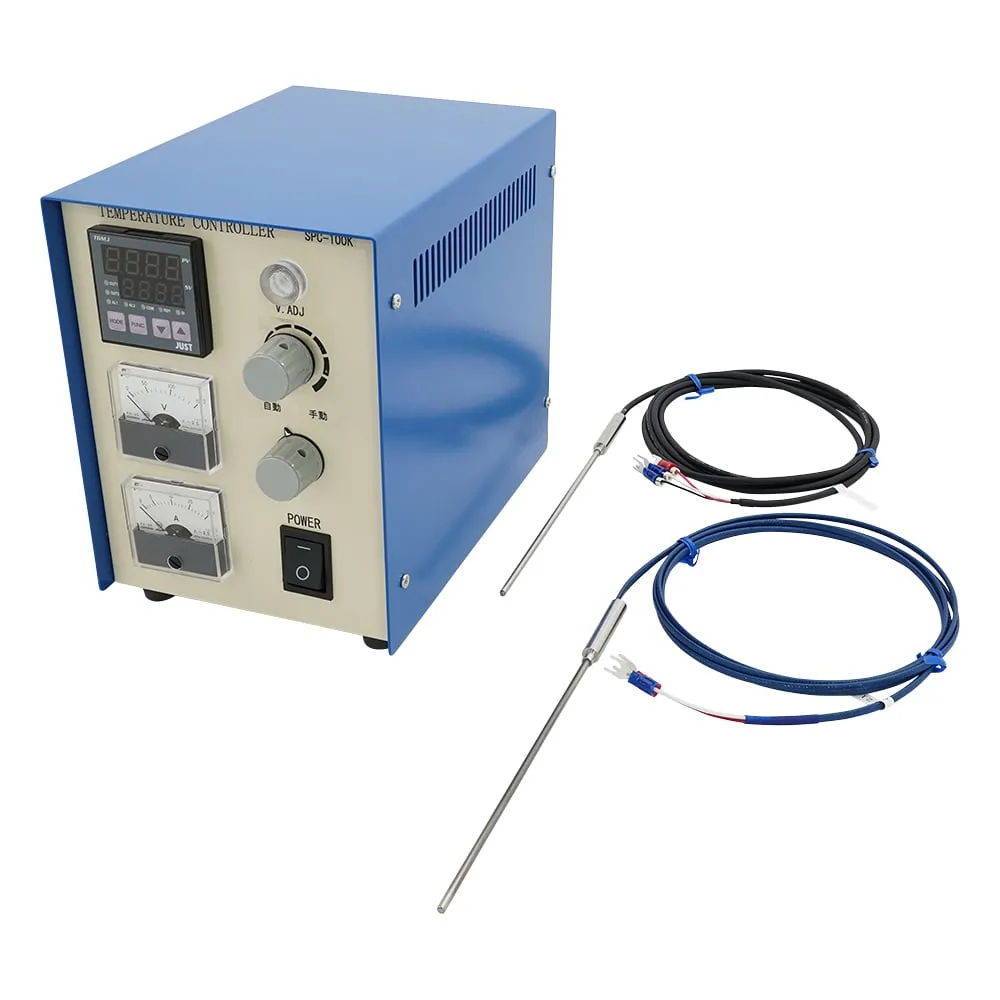

1-6539-11-20 Temperature Controller 100 V Calibration Certificate SPC-100K
model: 1-6539-11-20
brand: AS ONE Corporation
toner

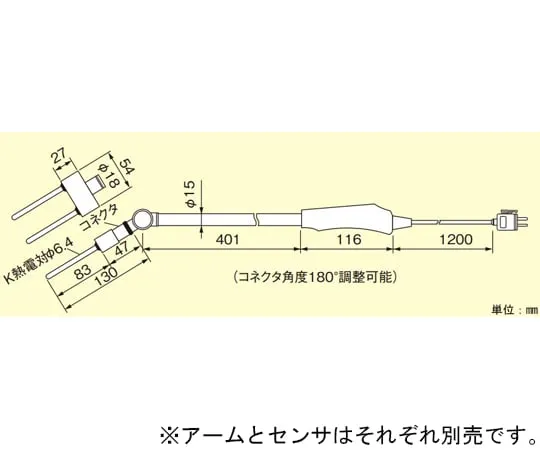

67-4917-14 Prong Type K Thermocouple Sensor Part With Arm For Temperature Sensor Ingot YC511-02K
model: 67-4917-14
brand: CHINO CORPORATION
toner

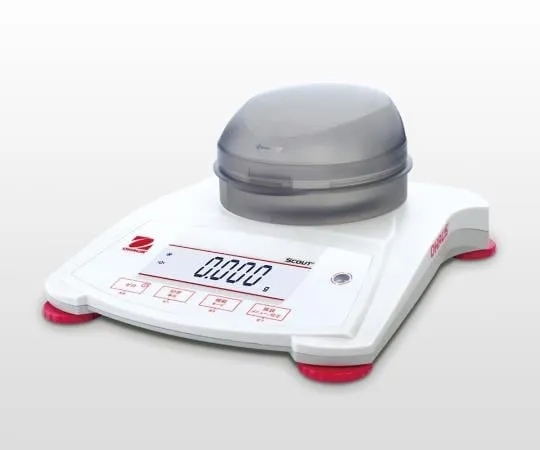

1-4817-11-20 Portable Electronic Balance phi 93 mm 120g with Calibration Certificate SPX123JP
