65-3533-88 ［Out of stock］High Performance Temperature Sensor for General Still Surface S Model Series with ISO Document Set -50~300°C 15φ (Flat) Low Temperature Type Type E S-113E-01-1-TPC1-ASP
Product Description
Product Model: 65-3533-88Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3533-88
Product Brand: ANRITSU METER CO., LTD.
Features
- S Series (S-1**/S-2**/S-3**) is a high-performance temperature sensor for general surface temperature measurement regardless of metal or non-metal.
- High-level measurement in pursuit of response speed and durability is possible.
- [Application] Temperature measurement of a die (die bonder) for semiconductor manufacturing equipment
- Induction heating steel burette surface temperature control and temperature measurement, etc.
- Temperature control and temperature measurement during the rolling process of metals and steel plates
- Measuring temperature between passes during welding
Spec
- Material: Head Material/Liquid Crystal Polymer, Pipe Material/Stainless Steel (SUS316), Contact Plate Material/Inconel Thickness 100 μm, Grip Material/Polyacetal
- Operating temperature range (°C): -50~300
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 1
- Durability: More than 100,000 cycles at 300°C
- Head Size (φmm): 15 (Flat)
- Head Type: Low Temperature Type
- Pipe Shape: 90°
- Type of thermocouple: Type E
- Pipe length (mm): 100
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 3.8
- Coating Material: Polyurethane
- Heat-resistant Temperature (°C): 110
- Plug Shape: Standard Plug
- Calibration Temperature Point: 100, 200, 300°C
- Document content: Inspection report, calibration certificate, traceability system diagram
Related product recommendations
You may also be interested in the following products
toner
65-3531-23 Tape Type Multi-Purpose Temperature Sensor Replacement Type STN Series 5 Pieces/1 Set -50~400°C 150 mm K Type STN-34K-015
model: 65-3531-23
brand: ANRITSU METER CO., LTD.
toner
65-3442-69 Bourdon Tube Vacuum Gauge A Pressure Range (MPA): -0.04~0 101-A350X-0.04MPA
model: 65-3442-69
brand: Asahi Gauge Manufacturing
toner

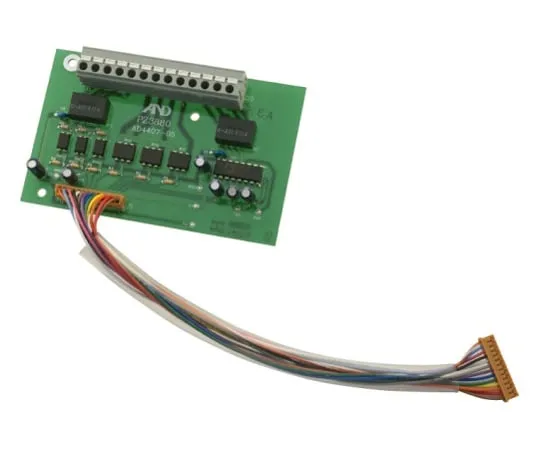

62-3147-69 RS -232 C Input/Output + Relay Output + Control Input for AD -4407 A AD4407-05
