65-3533-16 ［Out of stock］Semi-Solid Substance/Liquid General Temperature Sensor BS Series with ISO Document Set -200~500°C Outer Diameter 3φ 30 mm E Type BS-31E-030-TC1-ASP
Product Description
Product Model: 65-3533-16Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3533-16
Product Brand: ANRITSU METER CO., LTD.
Features
- The BS series is a general-purpose internal temperature sensor.
- It can measure the internal temperature of various objects, including liquids and semi-solids.
- [Application] Temperature control and temperature measurement of resin in injection molding
- Temperature control and temperature measurement of fryers and oil
Spec
- Material: Pipe Material/Stainless Steel (SUS304), Grip Material/Polyacetal
- Operating temperature range (°C): -200~500
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 3
- Durability: 1 year or more
- Protective Tube Outer Diameter (φmm): 3
- protection pipe appearance shapes: grip types
- With/without protective tube coating: No
- Thermocouple Type: E Type
- Length of protective tube (mm): 30
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
- Calibration Temperature Point: 100, 300, 500°C
- Document content: Inspection report, calibration certificate, traceability system diagram
Related product recommendations
You may also be interested in the following products
toner

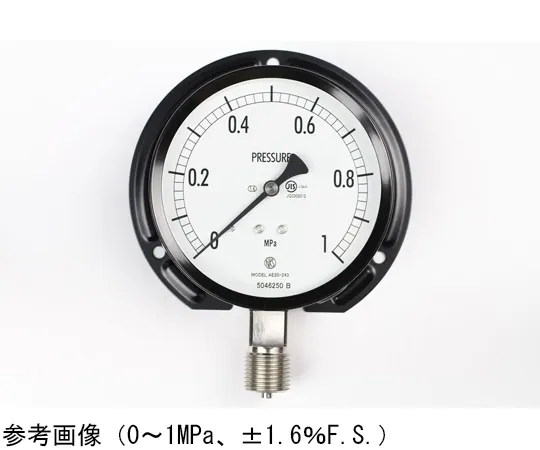

65-4288-75-20 Normal Pressure Gauge (Φ100) Vertical B Frame with 0.16 MPa Inspection Certificate AE20-243
model: 65-4288-75-20
brand: NAGANO KEIKI Co., Ltd.
toner
61-0117-82 Portable Turbidity/Residual Chlorine Meter HI 93414 HI93414
model: 61-0117-82
brand: Hanna Instruments
toner

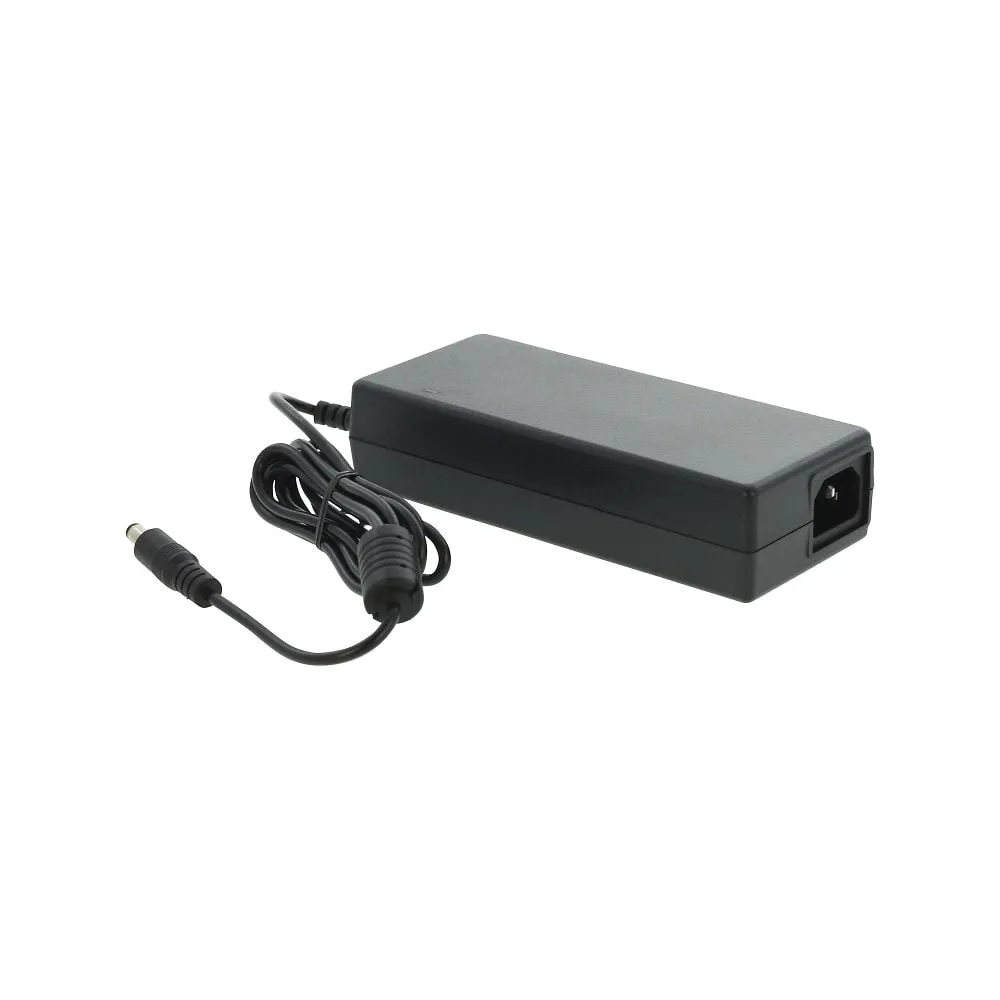

64-0836-34 ATS090-P240 AC Adapter For LVS-30 080800-032
