64-0828-79 ［Discontinued］Moisture Meter with Thermal Image TA415MR-176
Product Description
Product Model: 64-0828-79Product Brand: ICHINEN TASCO C […]
Contact Us
Product Details
Product Model: 64-0828-79
Product Brand: ICHINEN TASCO CO., LTD.
Features
- All-in-one moisture meter with built-in infrared camera
Spec
- Imaging detector: FLIR lepton microbolometer
- Image Calibration: Automatic (Manual Scale Lock option)
- Thermal image resolution (width x height): 4800 pixels (80 x 60)
- Spectrum wavelength: 8 to 14 μm
- measurement viewing angle (FOV) (Width x Height): 51 ° x 38 °
- Sensitivity: < 150 mK
- Detection limit (wet area detection @ 10 m): 49 cm 2
- Frame rate: 9 Hz
- Thermal palette: Iron, Rainbow, Ice, Grayscale (black and white)
- Minimum focal length for thermal images: 10 cm
- Display type: 320 x 240 pixel, 2.3 inch TFT graphical color display
- Image file format: BMP (with measurements)
- Number of images that can be saved: 9999
- laser orientation: center of thermal image
- Up to 18 hours of continuous operation
- material: PC-ABS
Related product recommendations
You may also be interested in the following products
toner
61-9735-23 ［Discontinued］Portable Combustion Control Tester (O2, CO, NO, CO2) SEM-103
model: 61-9735-23
brand: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.
toner
toner

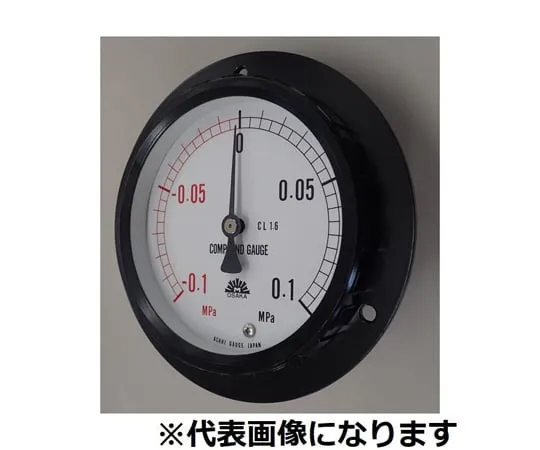

65-3454-71 Closed Coupled Meter D-Type Pressure Range (MPA): -0.1~0.1 315-D231X0.1-0.1MPA
