62-7027-93 ［Discontinued］Mass Flow Controller 8500MC-O-RC14-N2-10SCCM-1-2-20PSK-85
Product Description
Product Model: 62-7027-93Product Brand: KOJIMA INSTRUME […]
Contact Us
Product Details
Product Model: 62-7027-93
Product Brand: KOJIMA INSTRUMENTS INC.
Features
- It is a mass flow controller with integrated display and can be driven by 100 V AC with an attached AC power adapter.
- Allows easy flow control.
- Supports a wide range of flow rates (N2 equivalent full scale: 10SCCM to 100SLM).
- Various functions such as switching display function between instantaneous flow rate and accumulated flow rate, alarm output function, pattern setting function, etc. can support various applications.
Spec
- Sensor system: Thermal winding sensor
- Valve system: Proportional solenoid valve (closed when not energized)
- Indicator: Integrated
- Connection: RC 1/4
- Fluid: N2
- Control flow rate range: 0.2 ~ 10 CC/MIN (20 degrees C atmospheric pressure)
- Operating differential pressure range: 50 ~ 300 KPA
- Analog I/O: 0 -5 V
- Communications: RS 485
- Driving power: 24 VDC (includes AC power adapter for 100 VAC)
Related product recommendations
You may also be interested in the following products
toner

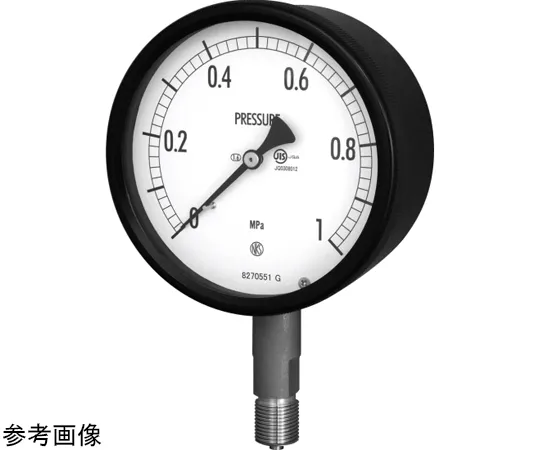

69-3922-28 φ100 Pressure Gauge JIS Compatible Sealed Pressure Gauge BE10 General G3/8B A Frame BE10-131-0.1-0.16MPA
model: 69-3922-28
brand: NAGANO KEIKI Co., Ltd.
toner
61-9406-91 Passive Dosi-Tube Acetone with Calibration Certificate (With Certificate Of Test) 151D
model: 61-9406-91
brand: GASTEC Corporation
toner

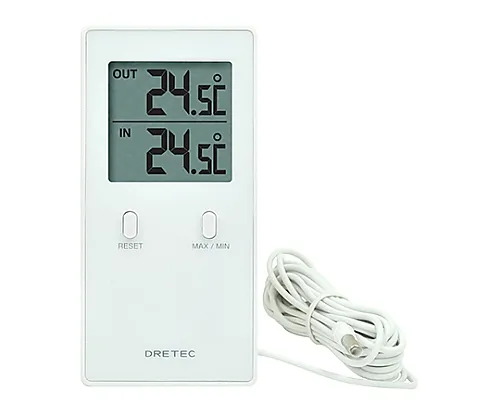

61-3523-08 ［Discontinued］Indoor/Outdoor Thermometer "RECTA" O-236WT
model: 61-3523-08
brand: DRETEC CO., LTD.
![64-3426-67 Temperature Sensor [thermocouple K] Duplex (tip welding) Type (Class1 Teflon Coating) TH-8391-1](https://www.mtlen.com/wp-content/uploads/2025/06/00642d0a1b41d7db966363bf9ea59506.webp)
toner

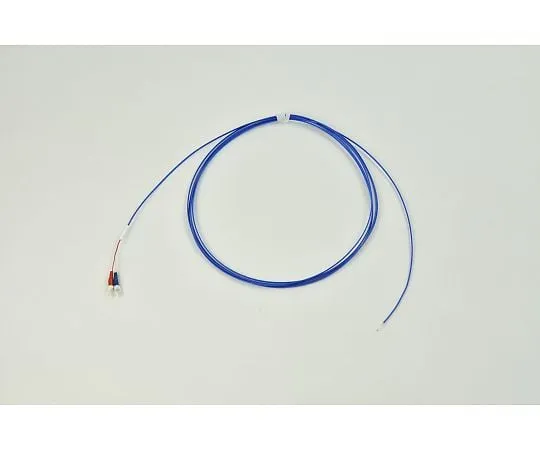

64-3426-67 Temperature Sensor [thermocouple K] Duplex (tip welding) Type (Class1 Teflon Coating) TH-8391-1
