61-9653-24 ［Discontinued］Phase Rotation Indicator with Voltmeter PD3259
Product Description
Product Model: 61-9653-24Product Brand: HIOKI E. E. COR […]
Contact Us
Product Details
Product Model: 61-9653-24
Product Brand: HIOKI E. E. CORPORATION
Features
- Can be ***d to measure voltage without metal contact and check single phase 3 wires
- Phase inspection and check voltage between wires are completed with a single measurement
- Measurement is safe since only a covered wire is sandwiched
- Normal phase and reverse phase can be seen at a glance by the color of the backlight and the buzzer sound
- Phase-order, ground phase and three-phase voltage values can be displayed on the same screen, which is convenient for *** in construction ID photos
Spec
- Item to be measured: 3 phase AC voltage (line voltage, Ground voltage), Frequency
- Measurement target: Coated electric cable (IV, CV equivalent), Metal portion (shield electric cable unavailable), 3 phase AC/90.0V - 520.0V (45Hz - 66Hz)
- Power supply: AA alkaline dry cell (LR6) x 4
- Maximum rated power: 3VA
- Continuous *** time: 5h (display unit backlight OFF, In standby state)
- Dimensions (width x height x depth mm): 84 x 146 x 46
- Mass: 590g (when battery is installed)
- Cable length: 0.5m
- Accessories: AA alkaline dry cell (LR6) x 4, Instruction manual x 1, Carrying case x 1, Spiral tube (black, Red, Blue, Yellow) 1 each
Related product recommendations
You may also be interested in the following products
toner
2-1985-01 Overheating Prevention Device TS101
model: 2-1985-01
brand: Yamato Scientific Co., Ltd.
toner
toner
toner

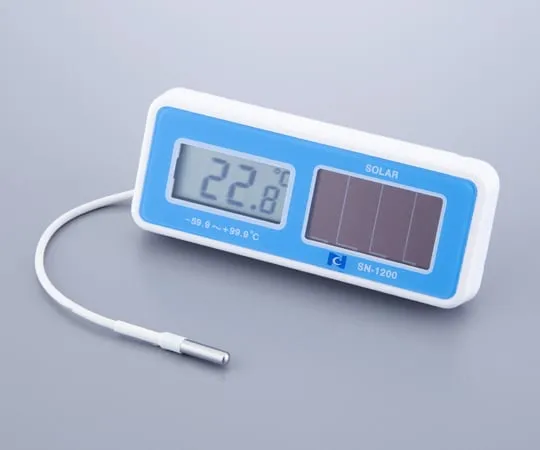

1-1995-01-57 Wide-range Solar Digital Thermometer with Chinese Calibration Certificate SN-1200
