61-4672-43 ［Discontinued］Frequency Counter AD-5184 AD-5184
Product Description
Product Model: 61-4672-43Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 61-4672-43
Product Brand: A&D
Features
- [Application]
- For frequency measurement in places where electricity flows, such as electrical electronics and circuit design.
- [Features]
- 1.5 GHz frequency counter
- Frequency, period, addition, RPM (1 minute value) measurement function
- Low-pass filter (100 kHz) cuts noise
- Output of internal reference frequency (time base)
- Input of external reference frequency (10 MHz)
Spec
- Input channel A (INPUT A), minimum input sensitivity: 30mVrms (0.1Hz - 100MHz)
- Input channel C (INPUT C), minimum input sensitivity: 35mVrms (80MHz - 1.1GHz), 70mVrms (1.1GHz - 1.5GHz)
- Input channel A (INPUT A), input connection: AC or DC, Selectable
- Input channel C (INPUT C), input connection: AC
- Input channel A (INPUT A), input impedance: Approximately 1MΩ, 40pF or lower
- Input channel C (INPUT C), input impedance: 50Ω ±5%
- Input channel A (INPUT A), maximum input voltage: 250V (DCV + ACVrms)
- Input channel C (INPUT C), maximum input voltage: 3Vrms
- Input voltage: 100VAC ±10%, 50Hz/60Hz
- Accessories: Instruction manual, Power cable 1 cable, Input cable (BNC-BNC) 1 cable, Spare f*** 1 piece
Related product recommendations
You may also be interested in the following products
toner
toner

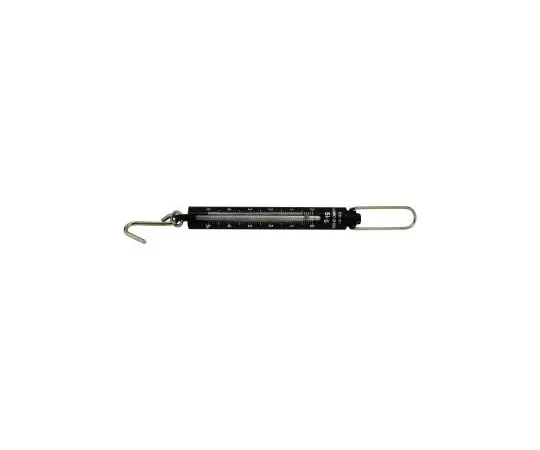

63-1319-50 ［Discontinued］Pipe Hand Scale 5kg
model: 63-1319-50
brand: NIIGATA SEIKI CO., LTD.
toner
4-4286-01 Oxygen Logger (nitrogen Switchable) O2-N2
model: 4-4286-01
brand: AS ONE Corporation
toner

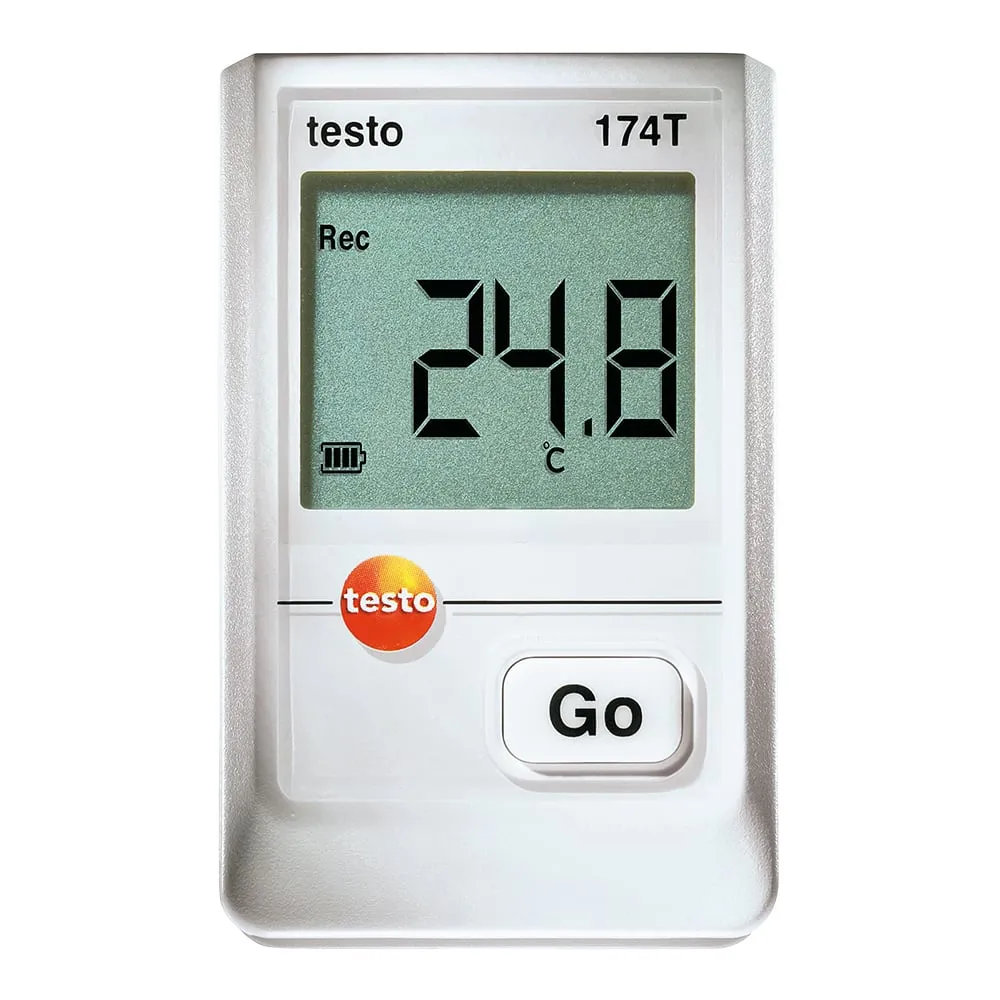

61-0104-36-56 TEST MINI TEMPERATURE Data Logger (1 ch) TEST 174T with English Calibration Certificate 05721560
