61-0107-18 ［Discontinued］Saveris U1 mA, V 5723250
Product Description
Product Model: 61-0107-18Product Brand: Testo K. K. Fea […]
Contact Us
Product Details
Product Model: 61-0107-18
Product Brand: Testo K. K.
Features
- A number of internal and external temperature and humidity probes are available for a wide range of applications.
Spec
- Probe type: 1 channel/current voltage input
- Measurement range: 2 lines type 4 - 20mA, 4 wire type 0/4 - 20mA, 0 - 1/5/10V
- Maximum load: 160Ω at 24VDC
- Accuracy: Current/±0.03mA/0.75μA, Voltage/0 - 1V, ±1.5mV/39μV, Voltage/0 - 5V, ±7.5mV/0.17mV, Voltage/0 - 10V, ±15mV/0.34mV, ±0.02%/K of Measurement value (deviation to pair 22℃)
- Connection: 2 wire or 4 wire type, Current voltage input port x 1
- Mass: 240g
- Power (required): 6.3VDC power supply unit, 24VAC/DC power substitute available (screw terminal board connection), PoE feeding
- Buffer power: Lithium ion rechargeable battery
- Protection grade: IP54
- Used temperature: -20 to +60℃
- Power consumption: PoE class 0 (typically 3W or less)
Related product recommendations
You may also be interested in the following products
toner
61-9411-81 Gas Detector Tube Hydrogen Cyanide with Calibration Certificate (With Certificate Of Test) 12M
model: 61-9411-81
brand: GASTEC Corporation
toner
toner
63-5626-34 Folded white paper 10 pieces 31.75 m 76mm×127mm×250SET
model: 63-5626-34
brand: Kobayashi Create
toner

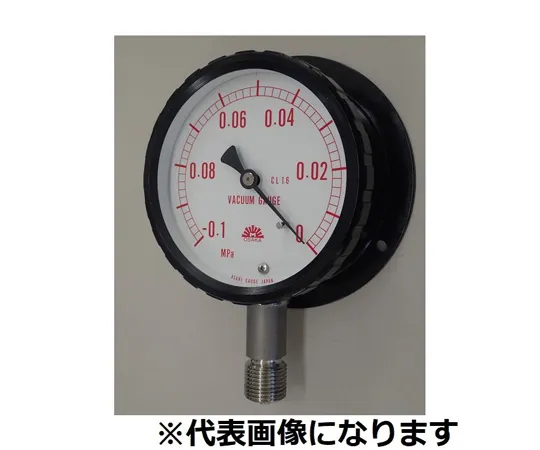

65-3487-43 Sealed Vacuum Gauge Type B Heat Resistant Vibration Resistance Pressure Range (MPA): -0.1~0 315-B350X-0.1MPA-HV
