61-0103-37 ［Discontinued］testo417 Compact Class φ100mm Vane Type Wind Velocity and Wind Flow Meter 5604170
Product Description
Product Model: 61-0103-37Product Brand: Testo K. K. Fea […]
Contact Us
Product Details
Product Model: 61-0103-37
Product Brand: Testo K. K.
Features
- By adopting a large φ100 mm vane type wind speed sensor, the wind speed (air volume) of the inlet/outlet and the ventilation fan was measured.
- Wind velocity is measured without being affected by turbulence by a large vane, even at an inlet and outlet with a grid.
- Optional funnel accurately calculates ventilation.
Spec
- Measurement range: Wind speed/0.3 - 20m/s, Air volume calculation/0 - 99,999m3/h, Temperature/0 to +50℃
- Accuracy ±1 digit: Wind speed/+/- (0.1m/s + 1.5% of measurement value), Temperature/±0.5℃
- Resolution: Wind speed/0.01m/s, Air volume calculation/0.1m3/h (0 - 99.9m3/h) 1m3/h (+100 to +99,999m3/h), Temperature/0.1℃
- Measurement frequency: 2 times/seconds
- Operation temperature: 0 to +50℃
- Battery type: 9V block type battery
- Battery life: Approximately 50 hours
- Outer dimensions: 277 x 105 x 45mm
- Mass: 230g
- Housing: ABS resin
Related product recommendations
You may also be interested in the following products
toner
61-9740-24 Gas Detector Tube 135SM Tetrachloroethylene 11013570
model: 61-9740-24
brand: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.
toner

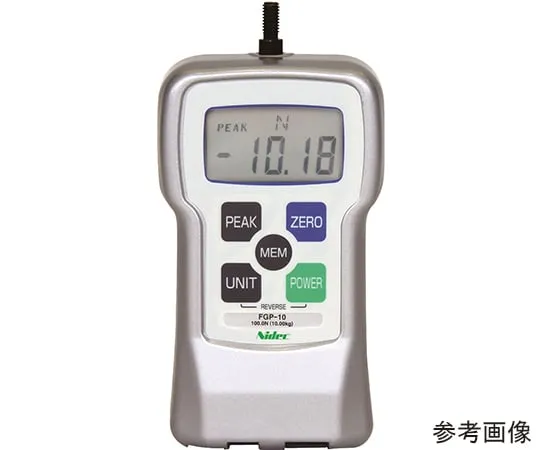

64-0698-80 Force Gauge (with Output/500 N)/Manufacturer's Calibration Certificate + Tresability System Diagram FGP-50
model: 64-0698-80
brand: NIDEC DRIVE TECHNOLOGY CORPORATION
toner

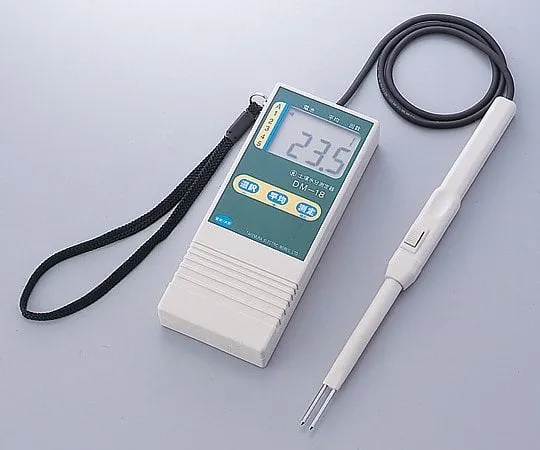

1-9921-01 ［Discontinued］Soil Moisture Measuring Instrument DM-18
