61-9734-89 ［Discontinued］Pocketable H2S Monitor TPA-5200E
Product Description
Product Model: 61-9734-89Product Brand: KITAGAWA, KOMYO […]
Contact Us
Product Details
Product Model: 61-9734-89
Product Brand: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.
Features
- * Please let us know the address on the certificate.
- Protects against hydrogen sulfide generated by volcanic gas, human waste treatment, sludge, sewage systems, valve plants, cleaning plants and organic matter decay.
- 1. EX Explosion-Proof Standard Accepted Product Exia II CT4X (TC No. 17022)
- 2. Small, lightweight, weight 150 g (including battery)
- 3. Two types of alarm: lamp and buzzer
- 4. Alarm with 2-stage alarm function
- 5. Alarm density can be set arbitrarily
- 6. Digital display unit and lighting function for easy viewing of density display, battery change, sensor abnormality, etc.
- 7. Power supply is AAA alkaline type battery which can be ***d for a long time with low power consumption
- 8. Battery capacity display with power ON. Full auto until sensor check
- 9. Peak hold function
- 10. Sensor has a downward structure and is not susceptible to water and dust
- 11. Remote measurement is possible with sensor extension cord (5 m to 30 m) and adapter (extension cable kid) as an option.
Spec
- Gas sampling method: Diffusion type
- Measurement target gas: Hydrogen sulfide (H2S)
- Measurement principle: Controlled-potential electrolysis type
- Measurement range: 0.0 - 50.0ppm
- Minimum display digit: 0.1ppm
- Indication accuracy: 0 - 30.0ppm ±1.5ppm, 30.1ppm or more: ±3.0ppm
- Concentration display: Liquid crystal, digital
- Alarm concentration: LOW: 10ppm/High: 30ppm (2 level alarm)
- Alarm method: LED lamp, LCD display, Buzzer
- Explosion-protection: ExiaIICT4X (No. TC17022)
- Response time: 90% response, 25 seconds or less
- Major functions: Display lighting, Battery remaining amount display, Automatic calibration
- Power supply: AAA alkaline dry cell 3 piece
- Continuous *** time: Approximately 1000 hours
- Operating temperature range: - 10 - 40℃ (Humidity: 30 - 85%RH, Non-condensing)
- Dimensions: 105 (W) x 56 (H) x 29 (D) mm (except for the sensor unit)
- Body mass: Approximately 150g (including cell)
- Accessories: Soft case
- Calibration certificate (breakdown: calibration certificate, certificate of test, traceability system diagram)
Related product recommendations
You may also be interested in the following products
toner

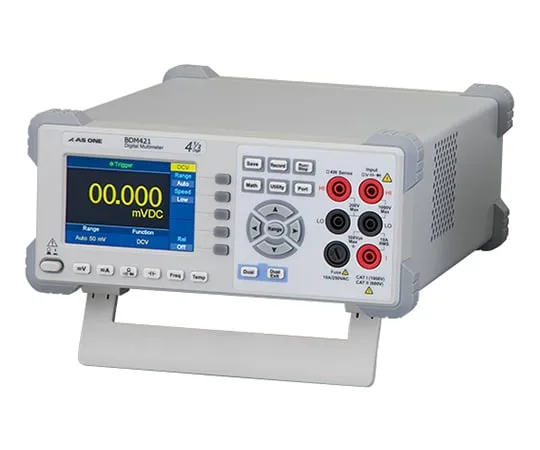

4-2691-11-24 ［Discontinued］Digital Multimeter 4 1/2 Digit with JCSS Calibration Certificate BDM421
