62-0854-37 ［Discontinued］Laser Power Meter LP1 Calibration Document 3 Points (Brand New Calibration) LP1
Product Description
Product Model: 62-0854-37Product Brand: SANWA ELECTRIC […]
Contact Us
Product Details
Product Model: 62-0854-37
Product Brand: SANWA ELECTRIC INSTRUMENT CO., LTD. (Sanwa)
Features
- Wide optical power measurement range: 0.01 μW to 39.99 mW
- A silicon photodiode is ***d for the light receiving sensor
- A light receiving sensor probe (cord extension 500 mm) can be stored in the main body.
- Useful minimum/maximum hold and auto power save (after about 30 minutes) for beam light measurement.
Spec
- Model number: LP1
- Measurement wavelength range (nm): 400 - 1100
- Accuracy: ±5% (1mW: 4mW ranges, 633a)
- Photo acceptance unit: Si photodiode (9mmφ)
- Measurement range: 40.00μW, 400.0μW, 4.000mW, 40.00mW
- Direct reading calibration wavelength: 633nm (He-Ne laser) standard type
- Sampling: Numerical value part/Approximately 2 times per second, Bar-graph part /Approximately 20 times per second
- Display: Numerical value part/3999 counts, Bar-graph part/42 segments
- Power supply: SR-44 or LR-44 cell x 2 pieces (optional)
- Size: 76 x 18 x 117mm
- Cord length: 500mm
- Function: Maximum/minimum value hold, auto power saving (after approximately 30 minutes)
- General calibration (with 3 ISO documents): Traceability certificate, certificate of test, calibration certificate
- *Calibration point follows the provisions of the Manufacturer.
- *Please tell us your name and address for the certificate.
Related product recommendations
You may also be interested in the following products
toner

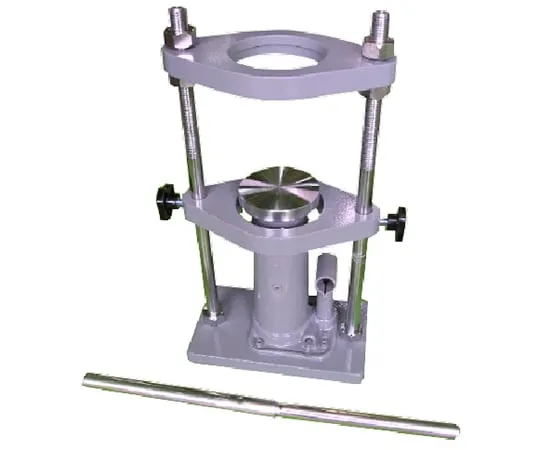

62-0860-71 JIS Hydraulic Sampling Instrument S-171c
