1-3219-01 ［Discontinued］Small Normal Sound Level Meter 6230
model:
1-3219-01
category:
toner
Product Description
Product Model: 1-3219-01 Features Lightweight and compa […]
Contact Us
Product Details
Product Model: 1-3219-01
Features
- Lightweight and compact type that fits in the chest pocket.
- Can be connected to a personal computer for easy data management and processing.
Spec
- Model number: 6230
- Integration-type sound level meter
- Item to be measured: Noise level Lp, equivalent noise level Leq, C characteristics peak LCpeak, noise level the large value Lmax
- Measurement range: A characteristics/30 - 130dB, C characteristics/36 - 130dB, Z characteristics/46 - 130dB, C characteristics peak sound pressure level/55 - 130dB
- Frequency range: 20 - 8000Hz
- Display: Liquid crystal, with backlight
- Memory: 128 data
- Interface: RS232C
- Supported OS: Windows(R)98SE/2000/XP/VistaTM/7/8.1
- Power supply: AAA dry cell x 2 volume (test included) or AC adapter (optional)
- Size: 48 x 23.5 x 168mm
- Weight: Approximately 120g (including cell)
- JIS C1502^-1990, IEC 60651・60804 (TYPE2), IEC CDV61672-1 (class2)
Related product recommendations
You may also be interested in the following products
toner
65-3480-20 Closed Pressure Gauge D-Type Pressure Range (MPA): 0~0.05 315-D380X0.05MPA
model: 65-3480-20
brand: Asahi Gauge Manufacturing
toner
toner
65-4291-32 Normal Pressure Gauge (Φ150) Vertical B Frame 100 MPa AG10-243
model: 65-4291-32
brand: NAGANO KEIKI Co., Ltd.
toner

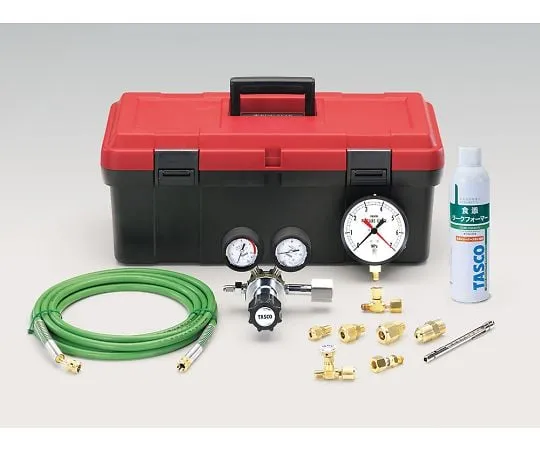

64-0796-12 N2 Pressurization Kit for Airtight Test TA385BG
