1-2836-01 ［Discontinued］Film Thickness Meter CG204
Product Description
Product Model: 1-2836-01Product Brand: EXTECH Features […]
Contact Us
Product Details
Product Model: 1-2836-01
Product Brand: EXTECH
Features
- It identifies substrate material（iron・non-ferrous metal） automatically.
- Measuring coating membrane surface of iron and non-ferrous plate.
- Lightweight and small compact type.
Spec
- Model number: CG204
- Measurement principle: Iron/magnetic force dielectric, Non ferrous metal/vortex current
- Accuracy: +/- 3%
- Minimum diameter: Iron/φ7mm, 275.6mils, Non ferrous metal/φ5mm, 196.9mils
- Minimum radius of curvature: Iron/1.5mm, 59.06mils, Iron/3mm, 118.1mils
- Minimum thickness: Iron/0.5mm, 19.69mils, Iron/0.3mm, 11.81mils
- Function: Continuous measurement, minimum/maximum/average value display
- Interface: USB
- Supported OS: Windows(R) XP/VistaTM (32bit)/7 (32, 64bit)
- Power supply: AAA dry cell x 2 (included for test)
- Size: 50 x 23 x 110mm
- Weight: 100g
- Measurement range: 0 - 1250μm, 0 - 49mils
- Resolution: 0.1μm, 0.004mils
- Accessories: Calibration, aluminum, USB cable, Software, Case
Related product recommendations
You may also be interested in the following products
toner

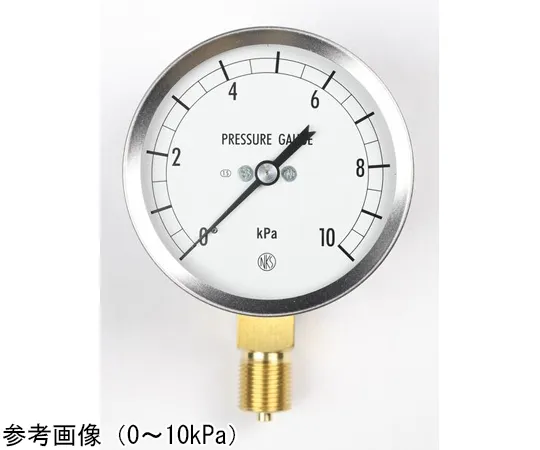

65-4317-54-20 Microbarometer (75Φ) with 10 kPa Inspection Certificate GL13-131
