4-785-01 ［Discontinued］Current Monitoring Device EDD-CT
Product Description
Product Model: 4-785-01Product Brand: AS ONE Corporatio […]
Contact Us
Product Details
Product Model: 4-785-01
Product Brand: AS ONE Corporation
Features
- By placing the unit at the root of an electrical appliance, the current transformer (CT) is ***d to monitor the inflow of power (1A or higher).
- By using optional LED warning lights, you can inform the entire room of the operation status.
- By ext***ing the cable from the alarm output side, you can monitor the operating condition in a remote room.
- Prevent Forgotten Cutting of Electrical Appliances and Materials!
Spec
- Output: 100 V1A
- Size (mm): 130 x 160 x 84
- Connected capacity: AC100V VMAX 12 A (Includes output for alerts)
- Alarm side connection capacity: MAX1A
- Output control method: voltage output by SSR
- Safety function: Overcurrent protection f***
- Power supply : AC100V 50/60Hz
- Power cord : Approximately 1.8 m (3P plug)
- Sensor type: CT (current transformer)
- Detected current value: 1 A or more
- Setting method: UP/DOWN key
- Connecting terminal: Operation output/3P outlet, alarm output/M3.5 Y terminal block
- Weight: about 1.2kg
Related product recommendations
You may also be interested in the following products
toner
65-4297-15-20 Sealed Pressure Gauge (75Φ) Vertical A Frame with 0.16 MPa Inspection Certificate BC12-181
model: 65-4297-15-20
brand: NAGANO KEIKI Co., Ltd.
toner
toner

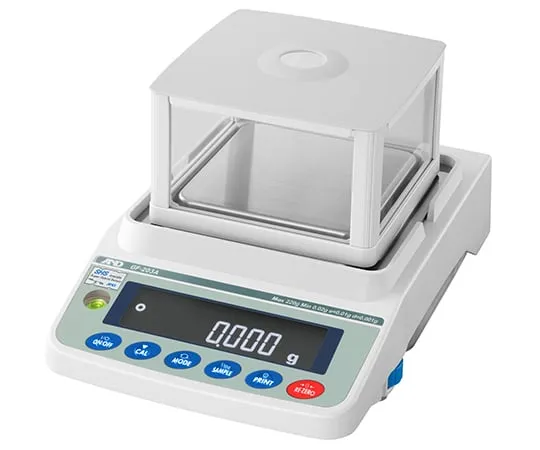

1-4032-31-20 Electronic Balance with Calibration Certificate GF-203A
