4-4556-01 ［Discontinued］Basic impact testing machine SGS-1
Product Description
Product Model: 4-4556-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-4556-01
Product Brand: AS ONE Corporation
Features
- This is a testing machine in which a hard ball is dropped from a set height to apply impact.
- The hard ball comes with a diameter of 50 mm/509 g.
- The height is calibrated, so it has excellent reproducibility.
- Visually assess plastic, paint cracking and peeling, and impact resistance of materials and products.
Spec
- Size (mm): 510 x 510 x 1250
- Weight (kg): approximately 18
- Number of pieces: 1
- Maximum test height: 1180 mm
- Test minimum height: 390 mm
- Height adjustment width: Stepless optional (1 mm between scales)
- Material: Drop tube/Column/Aluminum, Base/SUS 304, Side/Lid/PMMA (acrylic)
- Accessories: rigid sphere for impact test, phi 50 mm/509 g, lauan material (thickness/30 mm), auxiliary plate for rigid sphere installation
- *It is for the 50 strong ball. If you want a different diameter (weight), we can make a special order.
Related product recommendations
You may also be interested in the following products
toner

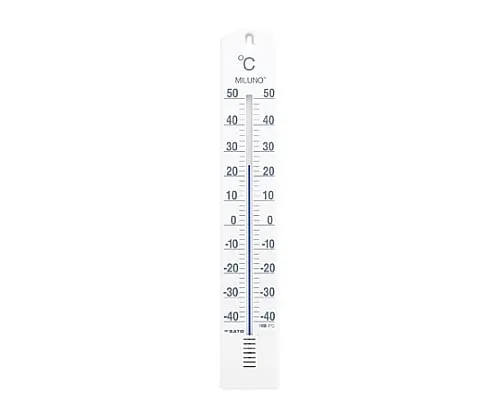

61-0065-53 Large Thermometer Miruno White 1517-00
