2-2623-01 ［Discontinued］LED Stroboscope LSS-01
Product Description
Product Model: 2-2623-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 2-2623-01
Product Brand: AS ONE Corporation
Features
- Possible to check both axial deflection and rotation speed.
- Power-saving type by using 16 high-intensity white LED.
- Rotation speed is set by jog dial.
Spec
- Model number: LSS-01
- Measurement accuracy: ±0.1% or less (1000rpm or 100Hz or more), ±1rpm (less than 1000rpm), ±0.1Hz (less than 100Hz)
- Lighting accuracy: 0.1% or less
- Light source: White color LED x 16 pieces
- Speed adjustment function: Adjustment sensitivity 4 stages
- Display unit: rpm, Hz (switching)
- Function: Power auto off, speed adjustment memory, cell exchange sign, backlight
- Measurement distance: Within 30cm (recomm***ed)
- Body material: ABS resin
- Power: LR6 AA dry cell x 2 pieces (optional)
- Size: 75 x 168 x 54mm (excluding projections)
- Weight: 170g (excluding cell)
- Measurement range: 60 - 150000rpm (1 - 2500Hz)
Related product recommendations
You may also be interested in the following products
toner

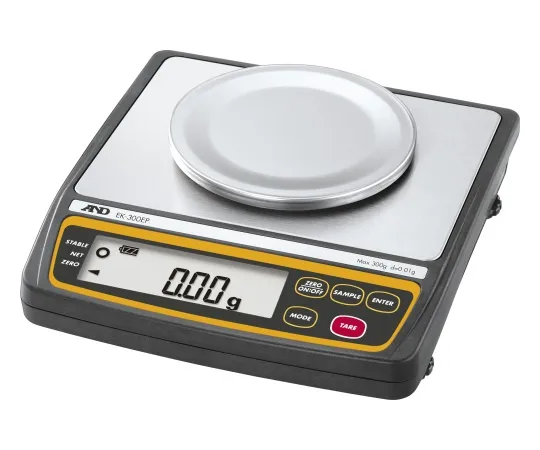

62-3146-78-20 ［Discontinued］Personal Electronic Balance with Calibration Certificate EK-300EP
model: 62-3146-78-20
brand: A&D
toner

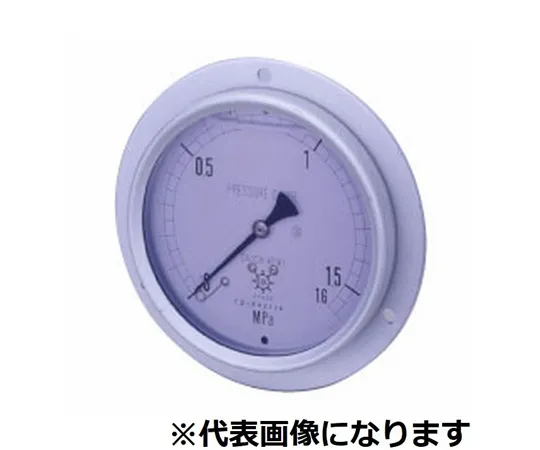

65-3625-22 GRK Glycerin Containing Coupled Meter D Type φ100 G3/8 -0.1~0.1MPA G-DU38-1000.1-0.1MPA
model: 65-3625-22
brand: Daiichi Keiki Mfg
toner

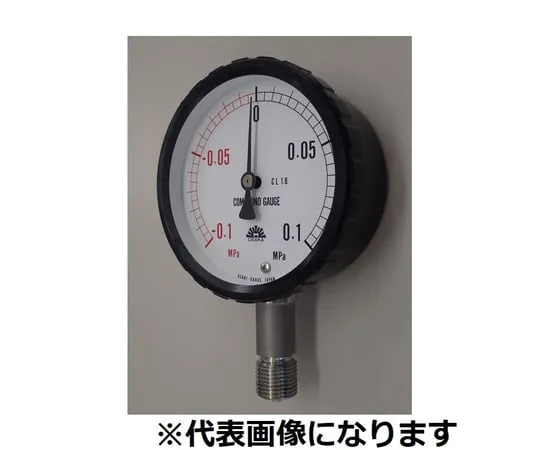

65-3459-09 Sealed Coupled Meter Type A Vibration-Resistant Pressure Range (MPA): -0.1~0.2 315-A231X0.2-0.1MPA-MV
